CM3 Circuit Sword Fan Cartridge

Post by HoolyHoo » Fri Apr 06, 2018 8:32 am

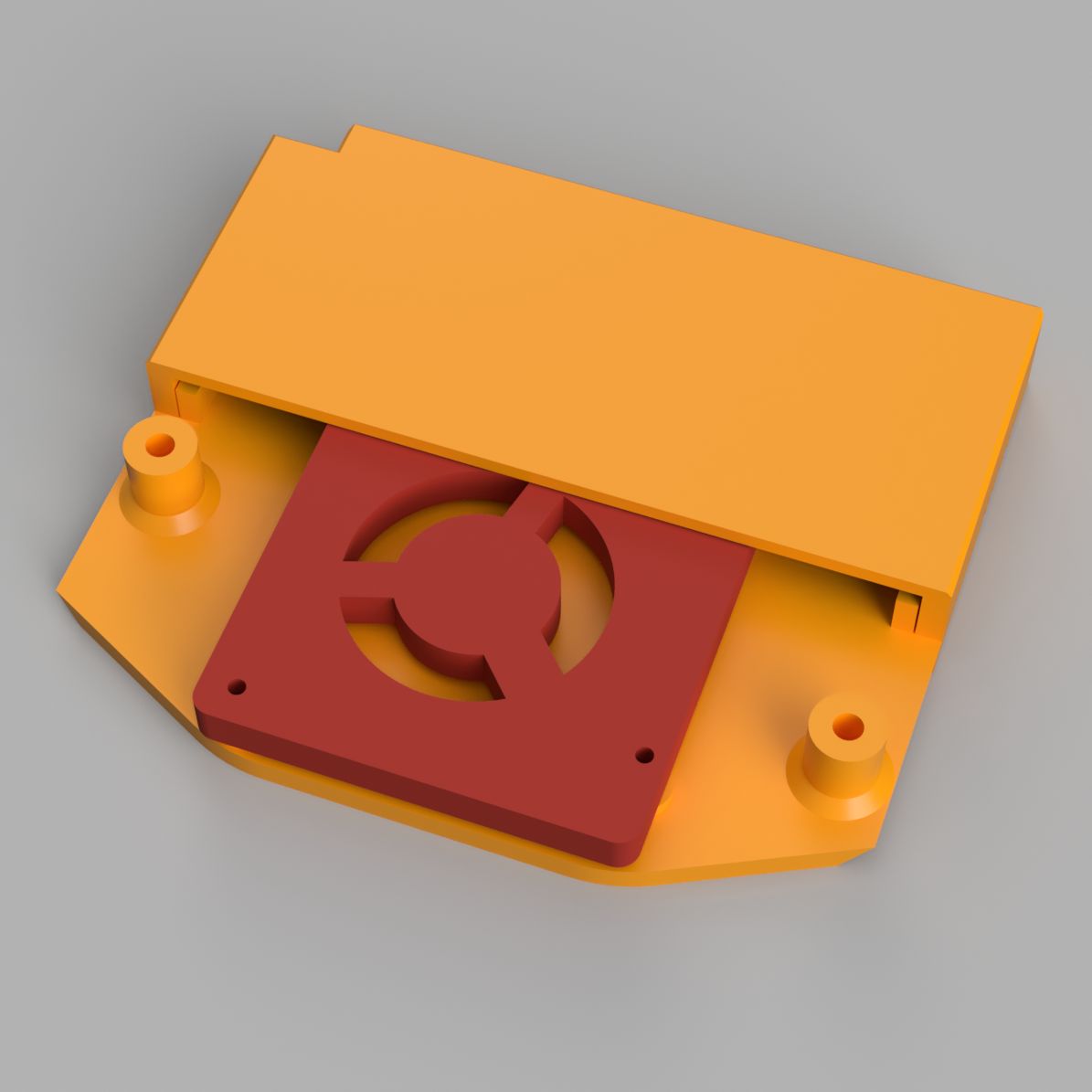

Ok guys, for the many that have asked, here is what I think is the final version of my CM3 fan cartridge for Kites awesome CS.
The cart itself needs no glue as everything is either snapped on or screwed into place. In the files I have included the front and back and front halves of the cart. Those halves snap together so nothing else needed there. Make sure to screw the fan in first. I have also included in the download a small tab that is used to secure the cart to existing GB shell screw post. No glue necessary to keep cart in. Print two of those if you are not using my Power/Mode support bracket or print the modified one I have included that has the tab already built in and then you will only need on tab on the right side and the new Power/Mode bracket on the left.

Lots of time goes into making and testing these designs so....
If Downloading, and Want to See More Designs in the Future, Please Consider Using the Button :D :
STL DownloadShow
CM3CartFan.zip
(1.96 MiB) Downloaded 331 times

User avatar
Adim01
Posts: 41
Joined: Sat Jul 15, 2017 10:53 am
Has thanked: 16 times
Been thanked: 5 times

Re: CM3 Circuit Sword Fan Cartridge

Post by Adim01 » Fri Apr 06, 2018 9:52 am

Nice work you did there :D
Did you benchmark the performance in relation to the original way? Would be nice to see :lol:

User avatar
HoolyHoo
Posts: 725
Joined: Sat Jul 09, 2016 9:34 pm
Has thanked: 229 times
Been thanked: 769 times

Re: CM3 Circuit Sword Fan Cartridge

Post by HoolyHoo » Fri Apr 06, 2018 10:01 am

Adim01 wrote: ↑
Fri Apr 06, 2018 9:52 am
Nice work you did there :D
Did you benchmark the performance in relation to the original way? Would be nice to see :lol:
Lol, maybe you can provide us that info on a PowerPoint with bar graphs. πŸ˜‚

Seriously, I will wait on feedback from you guys. πŸ˜‰

User avatar
Adim01
Posts: 41
Joined: Sat Jul 15, 2017 10:53 am
Has thanked: 16 times
Been thanked: 5 times

Re: CM3 Circuit Sword Fan Cartridge

Post by Adim01 » Fri Apr 06, 2018 10:27 am

HoolyHoo wrote: ↑
Fri Apr 06, 2018 10:01 am
Adim01 wrote: ↑
Fri Apr 06, 2018 9:52 am
Nice work you did there :D
Did you benchmark the performance in relation to the original way? Would be nice to see :lol:
Lol, maybe you can provide us that info on a PowerPoint with bar graphs. πŸ˜‚

Seriously, I will wait on feedback from you guys. πŸ˜‰

Hahhahaha I will see what I can do if I get my hands on one, but first I have to source a 3d printing service that uses resin. ;)
And I never really used PowerPoint, so you have to bear with some good old open Office :lol:

cowdog360
Posts: 34
Joined: Sun Feb 26, 2017 8:34 pm
Been thanked: 10 times

Re: CM3 Circuit Sword Fan Cartridge

Post by cowdog360 » Sun Apr 08, 2018 9:57 am

Adim01 wrote: ↑
Fri Apr 06, 2018 10:27 am
HoolyHoo wrote: ↑
Fri Apr 06, 2018 10:01 am
Adim01 wrote: ↑
Fri Apr 06, 2018 9:52 am
Nice work you did there :D
Did you benchmark the performance in relation to the original way? Would be nice to see :lol:
Lol, maybe you can provide us that info on a PowerPoint with bar graphs. πŸ˜‚

Seriously, I will wait on feedback from you guys. πŸ˜‰

Hahhahaha I will see what I can do if I get my hands on one, but first I have to source a 3d printing service that uses resin. ;)
And I never really used PowerPoint, so you have to bear with some good old open Office :lol:
You could always use shapeways and have it done in their SLS process, which looks very nice!

User avatar
dryja123
Posts: 1093
Joined: Tue May 09, 2017 5:34 pm
Location: Central NJ
Has thanked: 234 times
Been thanked: 567 times

Re: CM3 Circuit Sword Fan Cartridge

Post by dryja123 » Mon Apr 09, 2018 9:15 am

The fan cartridge looks great!


User avatar
Nicode70
Posts: 104
Joined: Sun Feb 11, 2018 9:36 am
Has thanked: 19 times
Been thanked: 19 times

Re: CM3 Circuit Sword Fan Cartridge

Post by Nicode70 » Mon Apr 09, 2018 10:10 am

yes it does! is there any way to paint it?
https://instagram.com/nicoGBPi
Nintendo ID: 0954-8664-4922

sygyzy
Posts: 179
Joined: Tue Sep 05, 2017 12:45 pm
Has thanked: 57 times
Been thanked: 27 times

Re: CM3 Circuit Sword Fan Cartridge

Post by sygyzy » Mon Apr 09, 2018 12:46 pm

Nicode70 wrote: ↑
Mon Apr 09, 2018 10:10 am
yes it does! is there any way to paint it?
Yes, you paint it.

---

Great job Hoolyhoo!

User avatar
Adim01
Posts: 41
Joined: Sat Jul 15, 2017 10:53 am
Has thanked: 16 times
Been thanked: 5 times

Re: CM3 Circuit Sword Fan Cartridge

Post by Adim01 » Mon Apr 09, 2018 12:49 pm

cowdog360 wrote: ↑
Sun Apr 08, 2018 9:57 am
Adim01 wrote: ↑
Fri Apr 06, 2018 10:27 am
HoolyHoo wrote: ↑
Fri Apr 06, 2018 10:01 am


Lol, maybe you can provide us that info on a PowerPoint with bar graphs. πŸ˜‚

Seriously, I will wait on feedback from you guys. πŸ˜‰

Hahhahaha I will see what I can do if I get my hands on one, but first I have to source a 3d printing service that uses resin. ;)
And I never really used PowerPoint, so you have to bear with some good old open Office :lol:
You could always use shapeways and have it done in their SLS process, which looks very nice!
Yeah i thought about it too but i quoted the stl's and they wanted something around 100€ so i didn't go with them, i instead found a lokal SLA printig service on treatstock who did all the parts for around 15,50$ so about 13€.

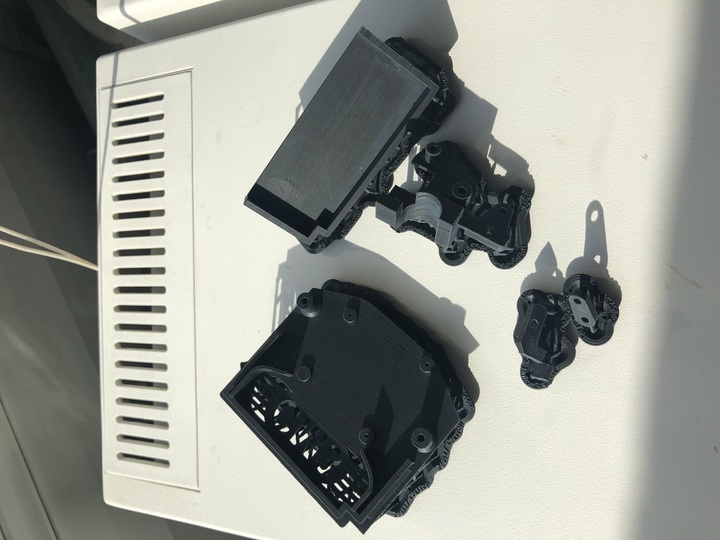

this is the production picture they send me.
Will post an update how they turned out. :D
Attachments

User avatar
HoolyHoo
Posts: 725
Joined: Sat Jul 09, 2016 9:34 pm
Has thanked: 229 times
Been thanked: 769 times

Re: CM3 Circuit Sword Fan Cartridge

Post by HoolyHoo » Mon Apr 09, 2018 3:01 pm

Did some initial test on the airflow since I was finally able to come close to completing my build. I can tell you that it looks very promising. Fan blows warm air out as intended and temperature drops quickly to stop the fan. Testing was done without a heat sink :o so I imagine when I do place one it should be that much better. Looking to use a flatter larger one since there is space with the fan relocated. Very impressed :D
