Robochris’ Gem

Post by Robochris » Fri Mar 15, 2019 2:29 pm

I was a little hesitant to build a gem just because of the screen being so small but it’s super sharp for its size.

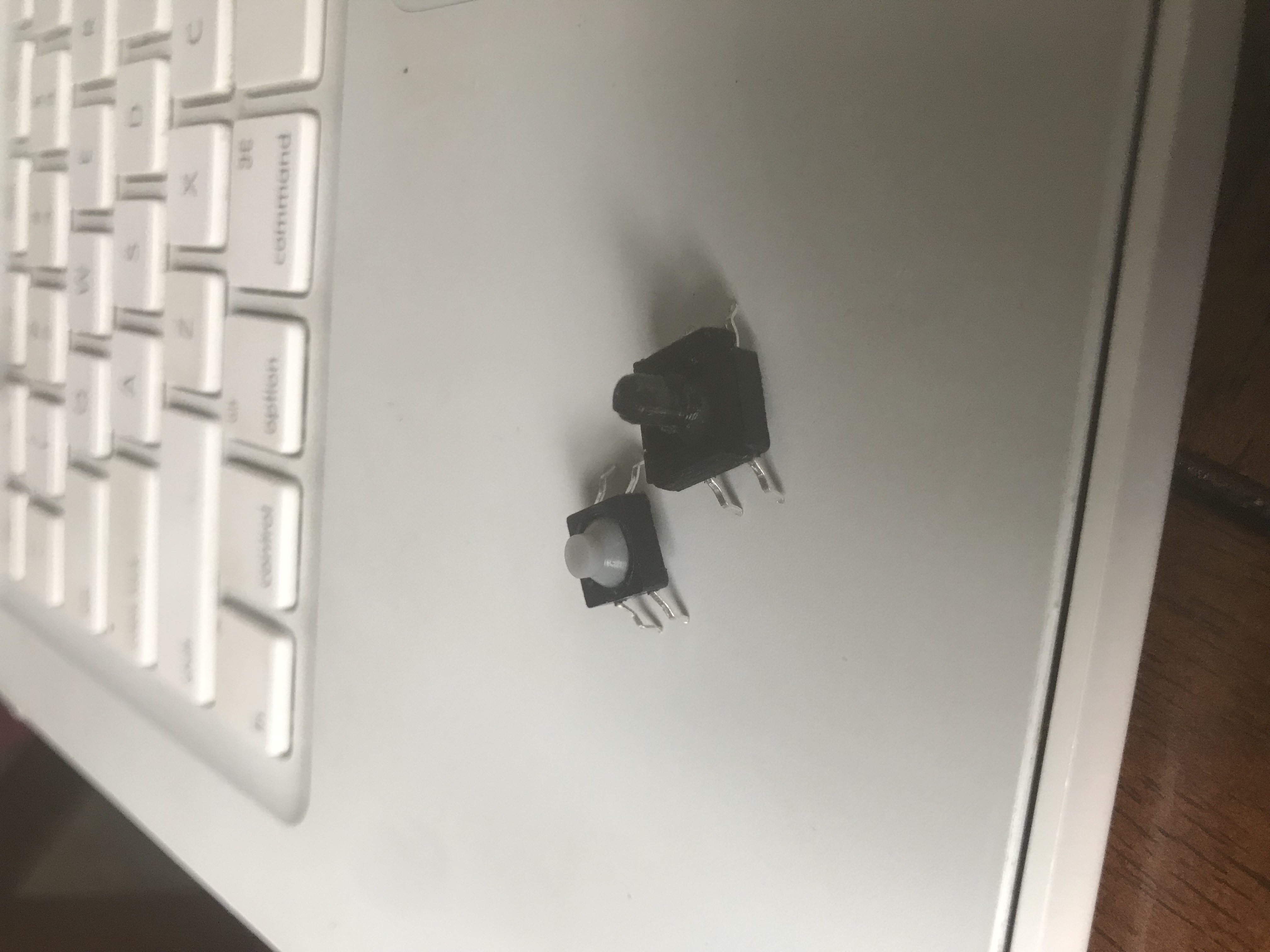

I used soft tactile switches for L/R because I love the way they feel like an actual button on a controller. I designed and printed brackets and button caps for them.

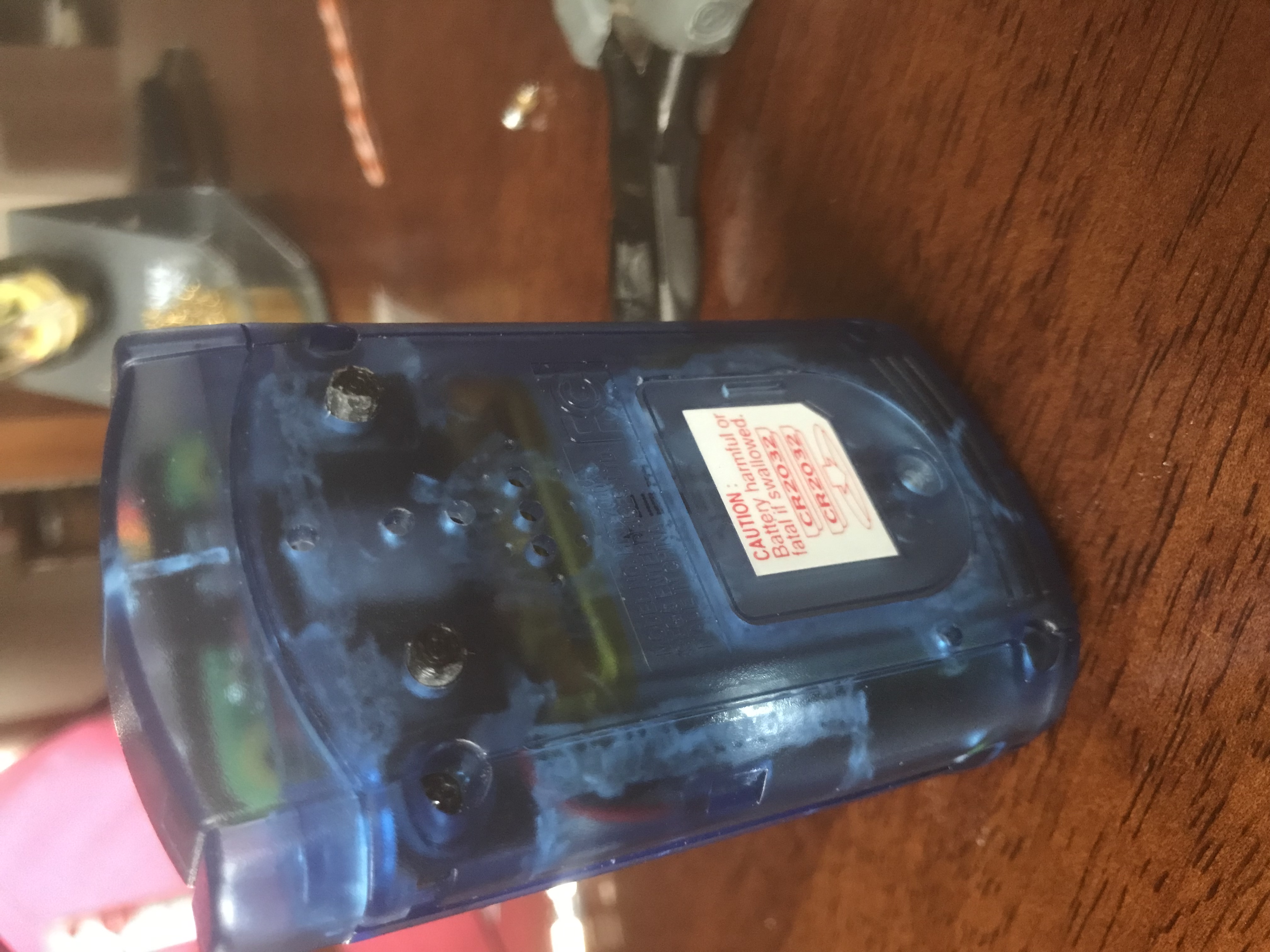

The only imperfections that, aren’t bad but could’ve been better is the holes for the speaker and L/R aren’t quite symmetrical. But oh well.

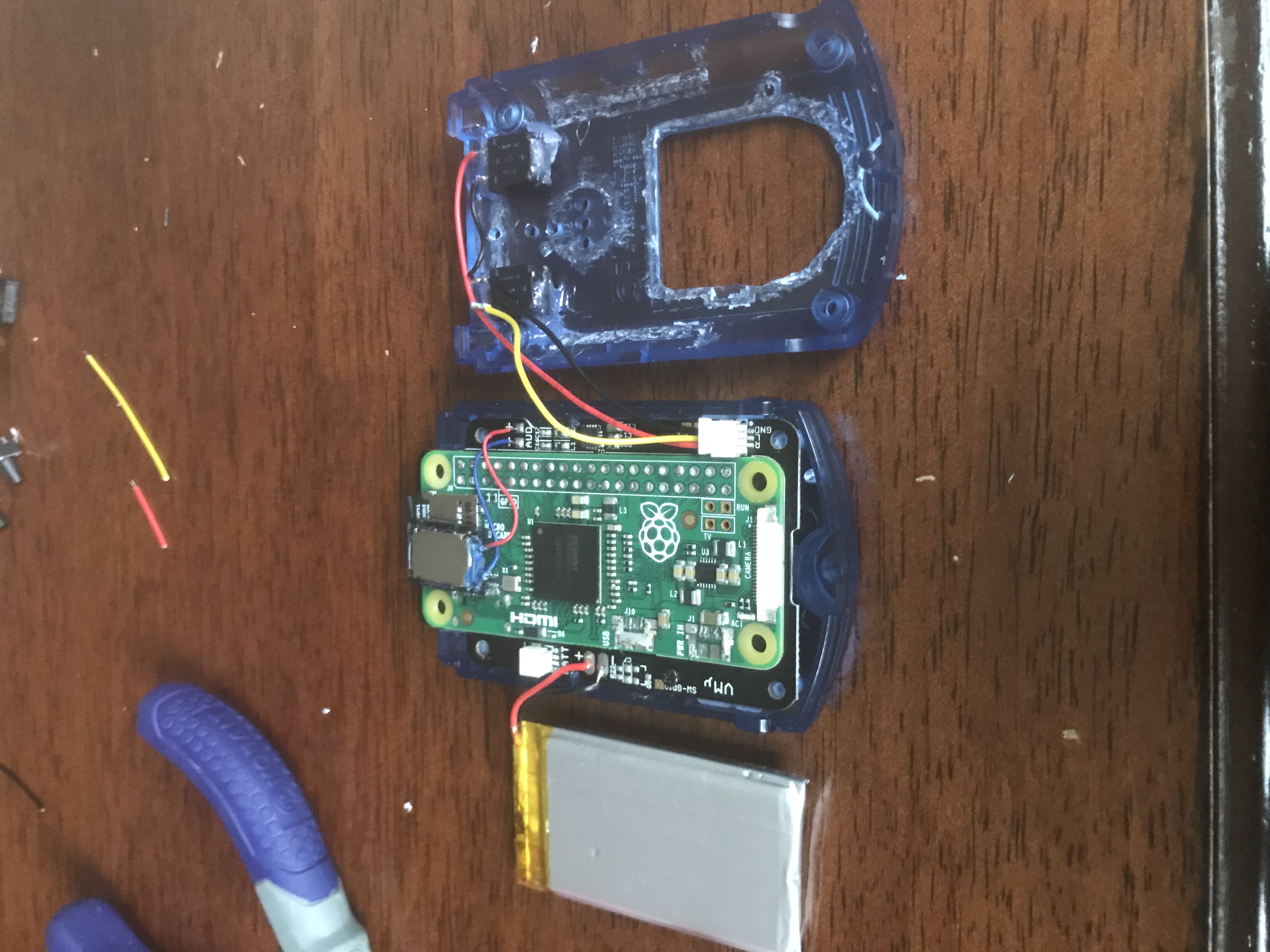

750mAh battery.

User avatar
Robochris
Posts: 310
Joined: Thu Feb 16, 2017 7:49 am
Location: Ohio
Has thanked: 82 times
Been thanked: 41 times

Re: Robochris’ Gem

Post by Robochris » Sat Mar 16, 2019 10:01 am

Just a side note, if anyone is interested in the brackets and button caps I used, I’d be happy to share the stl files.

originalself
Posts: 8
Joined: Wed Oct 24, 2018 2:50 pm
Been thanked: 2 times

Re: Robochris’ Gem

Post by originalself » Sat Mar 16, 2019 7:16 pm

Robochris wrote:
Sat Mar 16, 2019 10:01 am
Just a side note, if anyone is interested in the brackets and button caps I used, I’d be happy to share the stl files.
Yes please. Always nice having options. Gotta love 3d printers. Wish a vmu shell stl existed.

User avatar
Robochris
Posts: 310
Joined: Thu Feb 16, 2017 7:49 am
Location: Ohio
Has thanked: 82 times
Been thanked: 41 times

Re: Robochris’ Gem

Post by Robochris » Sun Mar 17, 2019 11:51 am

originalself wrote:
Sat Mar 16, 2019 7:16 pm
Robochris wrote:
Sat Mar 16, 2019 10:01 am
Just a side note, if anyone is interested in the brackets and button caps I used, I’d be happy to share the stl files.
Yes please. Always nice having options. Gotta love 3d printers. Wish a vmu shell stl existed.
I’ll post them when I’m back to my Mac. Yeah, I looked for a vmu stl but found nothing. And I don’t think I can design something that elaborate and precise.
Last edited by Robochris on Mon Mar 18, 2019 8:37 pm, edited 1 time in total.

User avatar
Robochris
Posts: 310
Joined: Thu Feb 16, 2017 7:49 am
Location: Ohio
Has thanked: 82 times
Been thanked: 41 times

Re: Robochris’ Gem

Post by Robochris » Sun Mar 17, 2019 8:00 pm

Here are the parts I designed and used.
gem lr button.stl
(12.39 KiB) Downloaded 449 times
gem button holder.stl
(3.99 KiB) Downloaded 455 times

originalself
Posts: 8
Joined: Wed Oct 24, 2018 2:50 pm
Been thanked: 2 times

Re: Robochris’ Gem

Post by originalself » Mon Mar 18, 2019 10:29 am

Robochris wrote:
Sun Mar 17, 2019 8:00 pm
Here are the parts I designed and used.

gem lr button.stl
gem button holder.stl
Nice. Thank you.
