GEM Blank screen

Post by originalself » Sat Mar 02, 2019 11:10 am

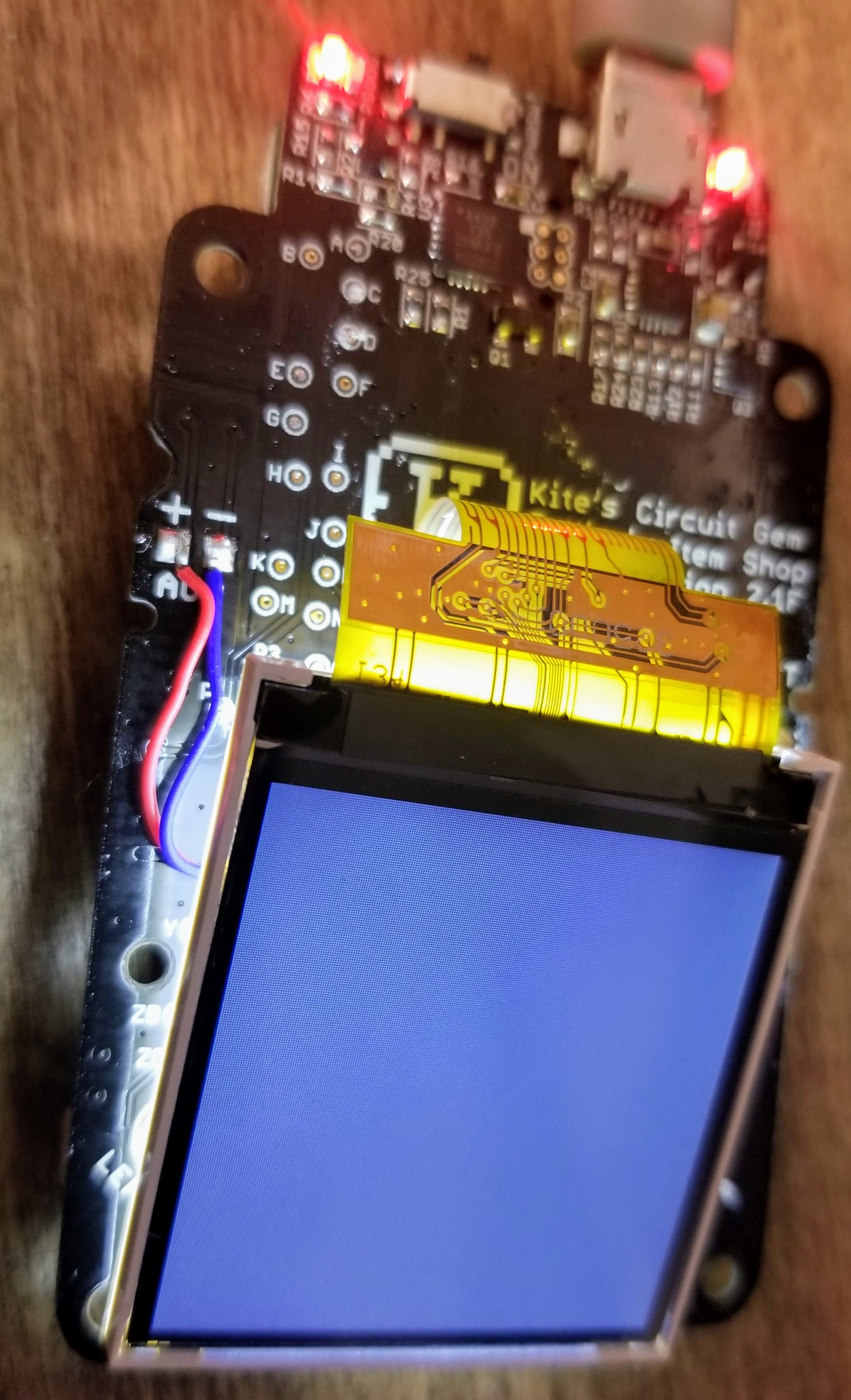

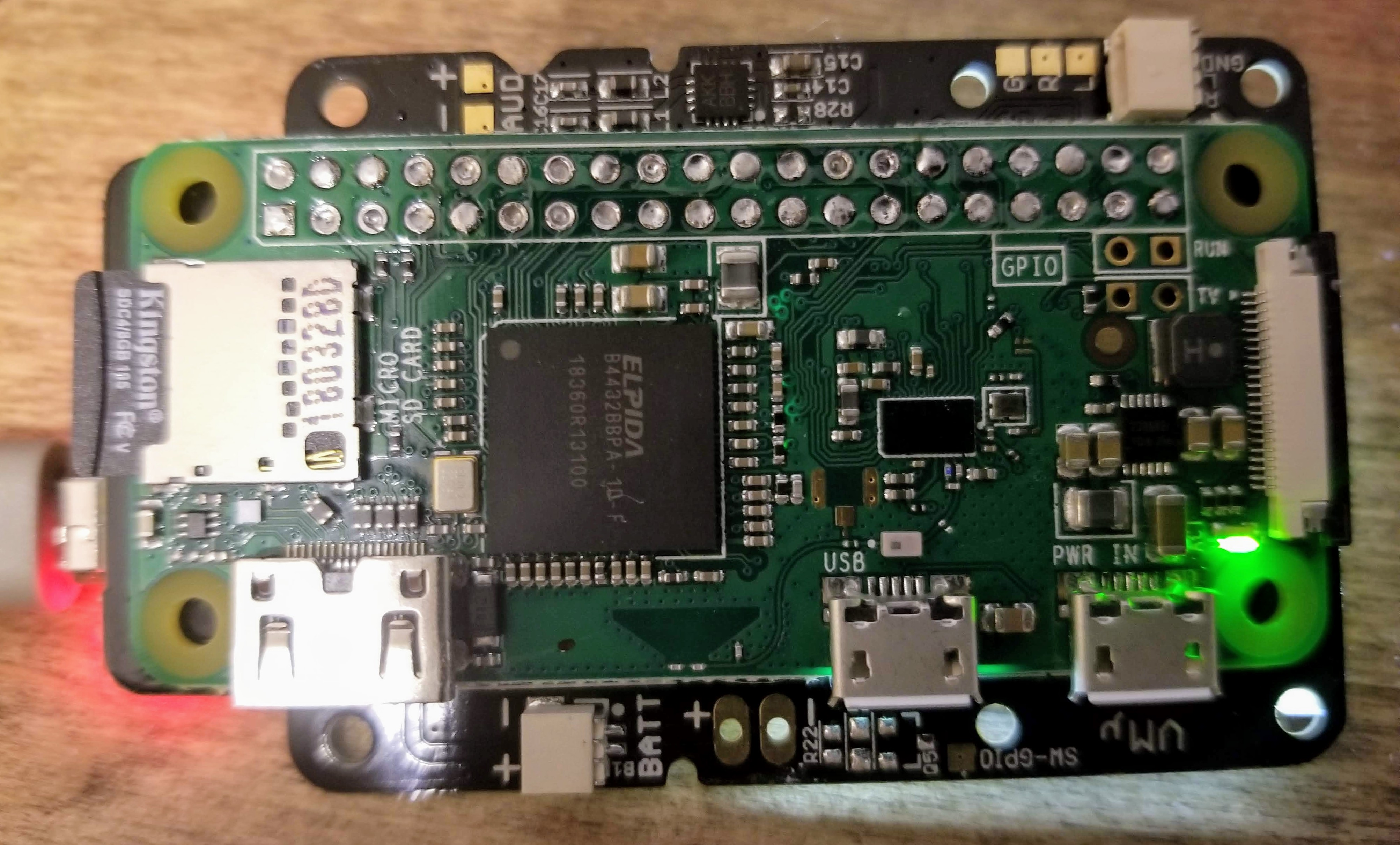

Well I started working on my GEM kit today and seem to be stuck getting the screen going. I went back over all the pins and they seem to go all the way through. I changed the file on the sd to run debug and the green light on the pi flashes like it is reading. Backlight comes on for the lcd. Is their a particular pin I should be checking for connection? Thanks for any assistance.

User avatar
Strider
Posts: 29
Joined: Fri Feb 16, 2018 9:03 pm
Location: Elsewhere
Has thanked: 20 times
Been thanked: 4 times

Re: GEM Blank screen

Post by Strider » Sat Mar 02, 2019 12:33 pm

Do you have a multimeter you can use to check continuity with? I thought all my solder joints we're good but I couldn't get the screen to save my life. Turns out I had a bad screen reset joint.

Kite has the pinout on the FAQ, double check to make sure the pins and the breakout points match up. Also make sure you're using enough solder and you're maintaining heat for long enough, I was way too shy with both my first run through.

originalself
Posts: 8
Joined: Wed Oct 24, 2018 2:50 pm
Been thanked: 2 times

Re: GEM Blank screen

Post by originalself » Sat Mar 02, 2019 7:12 pm

Thanks for the information. I will grab a multi meter on Monday and check everything.

originalself
Posts: 8
Joined: Wed Oct 24, 2018 2:50 pm
Been thanked: 2 times

Re: GEM Blank screen

Post by originalself » Sun Mar 10, 2019 3:57 pm

Strider wrote:
Sat Mar 02, 2019 12:33 pm
Do you have a multimeter you can use to check continuity with? I thought all my solder joints we're good but I couldn't get the screen to save my life. Turns out I had a bad screen reset joint.

Kite has the pinout on the FAQ, double check to make sure the pins and the breakout points match up. Also make sure you're using enough solder and you're maintaining heat for long enough, I was way too shy with both my first run through.
Worked like a charm. After testing I had eight to redo. Only one was stubborn and required removing solder and starting again. Thanks for the advice.

User avatar
Strider
Posts: 29
Joined: Fri Feb 16, 2018 9:03 pm
Location: Elsewhere
Has thanked: 20 times
Been thanked: 4 times

Re: GEM Blank screen

Post by Strider » Mon Mar 11, 2019 12:48 pm

Cheers! Glad you got it up and running!
