[SOLVED] Can´t connect to WiFi - Pocket Pi FE

Post Reply
User avatar
ekilla
Posts: 162
Joined: Sat Dec 09, 2017 8:04 am
Has thanked: 42 times
Been thanked: 50 times

[SOLVED] Can´t connect to WiFi - Pocket Pi FE

Post by ekilla » Mon May 06, 2019 3:01 am

Hi, my Pocket Pi doesn´t want to connect to my Wifi and I don´t get why.
I´m next to my router all the time.
I´ve reflashed the Image twice, everytime the same result.

I have to say at the beginning I´m not very familiar with retropie, since I usually use Recalbox.

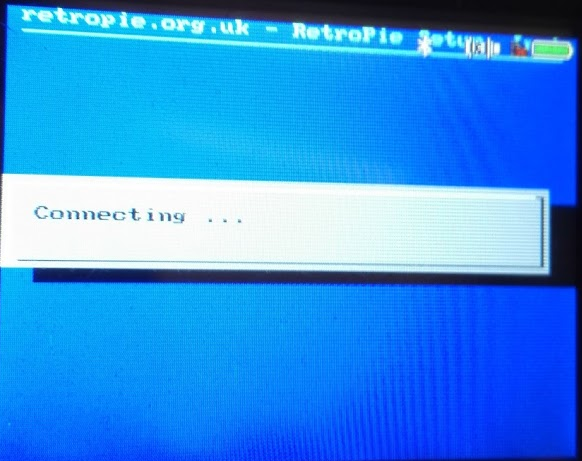

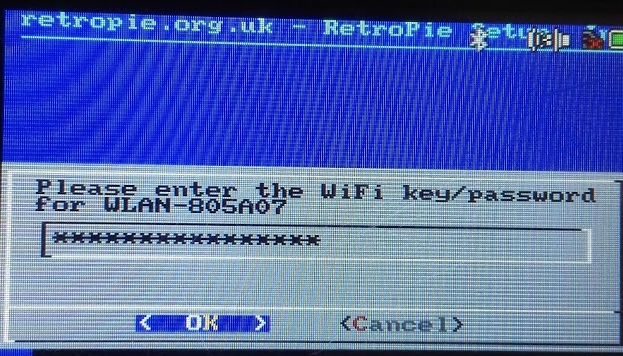

After giving my WiFi password, the Pi tries to connect and just says

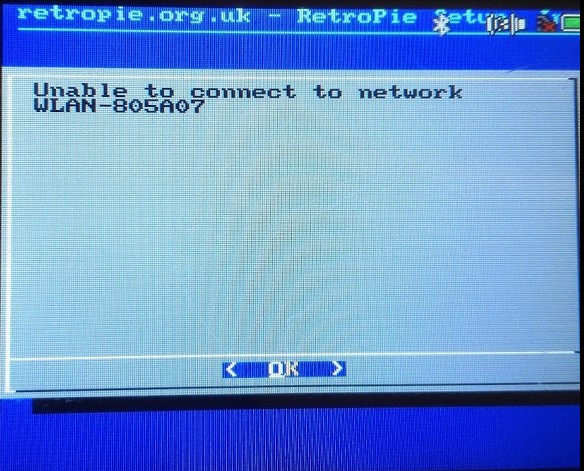

*Unable to connect -to network xxxxxx*
SpoilerShow
SpoilerShow
SpoilerShow

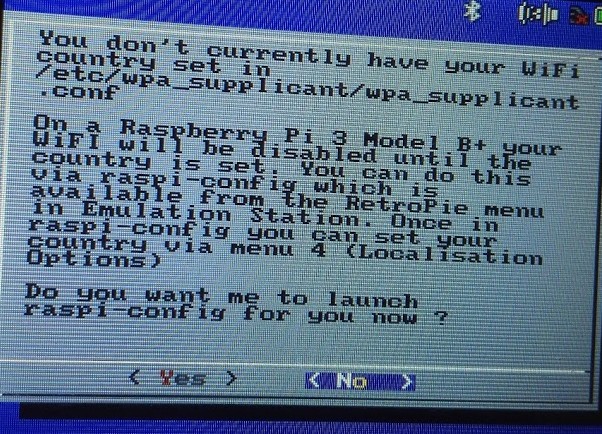

After a fresh reflash, starting with the second try to connect the Wifi it always keeps giving me a message at the beginning I should choose my country for WiFi:
SpoilerShow
Country Message.jpg
Country Message.jpg (136.26 KiB) Viewed 329 times
I tried in I1 to set to de-de, that didn´t change anything. Still the same.

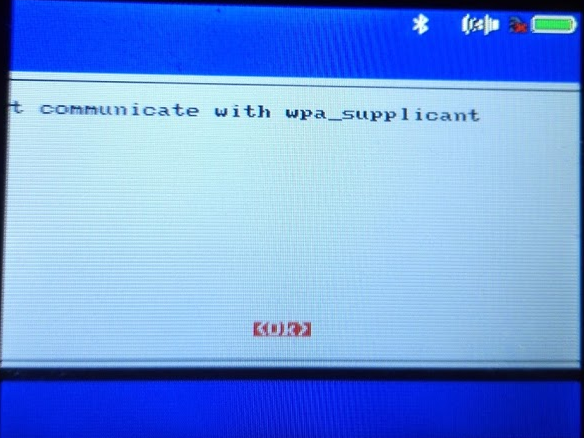

If I try to go to I4 I get an error message:
SpoilerShow
SpoilerShow
I think it´s "can´t" at the beginning.
After pressing ok:
SpoilerShow

I didn´t try to make a wifikeyfile.txt in the boot partition for now since I wanted to know what I´m doing wrong.


So even if I have the Pocket Pi up and running I can´t play since I can´t tranfere roms.
The USB Port of the PI isn´t accessable too, the charging/stepup modul sits in it´s way.

If anybody knows what I´m doing wrong, thank you.
Last edited by ekilla on Wed May 08, 2019 5:53 am, edited 4 times in total.

ncdelrio
Posts: 12
Joined: Fri Apr 26, 2019 7:34 am
Been thanked: 2 times

Re: Can´t connect to WiFi - Pocket Pi FE

Post by ncdelrio » Mon May 06, 2019 9:55 am

I put my SD in another pi that I could connect to monitor and keyboard. Then in the command line I created /etc/network/interfaces file, wpa supplicant file, and wifikeyfile. I also connected that pi to ethernet, and updated the software. I could then load the SD in my pi 0 W and it connects to my wifi automatically. Hope this helps.

sudo nano /etc/network/interfaces

auto lo

iface lo inet loopback
iface eth0 inet dhcp

allow-hotplug wlan0
auto wlan0
iface wlan0 inet dhcp
wpa-ssid "NETWORK_NAME"
wpa-psk "NETWORK_PASSWORD"

/etc/wpa_supplicant/wpa_suuplicant.conf

country=US
ctrl_interface=DIR=/var/run/wpa_supplicant GROUP=netdev
update_config=1

# RETROPIE CONFIG START
network={
ssid="your_real_wifi_ssid"
psk="your_real_password"
}
# RETROPIE CONFIG END

wifikeyfile.txt (in boot)

ssid="NETWORK_NAME"
psk="NETWORK_PASSWORD"

User avatar
Ely
Posts: 25
Joined: Wed Aug 15, 2018 5:44 am
Has thanked: 7 times
Been thanked: 11 times

Re: Can´t connect to WiFi - Pocket Pi FE

Post by Ely » Mon May 06, 2019 9:59 am

Hey, no need to connect it to another Pi, just use a text editor like notepad ++ or wordpad on your computer.

make a new txt file and copy / past this in:

Code: Select all

country=XXXXXXXXXXX
ctrl_interface=DIR=/var/run/wpa_supplicant GROUP=netdev
update_config=1

# RETROPIE CONFIG START
network={
	ssid="XXXXXXXXXXXX"
	psk="XXXXXXXXXXXX"
	key_mgmt=WPA-PSK
    pairwise=CCMP
    group=CCMP
    auth_alg=OPEN
}
# RETROPIE CONFIG END
Change the XXXXXXXX with your datas:
-Country > if you are in the usa put > US, england > UK, France > FR, etc.....
-SSID > the ID of your box (wlan-805a07 on your screenshot)
-PSK > your WPA Key

save and quit > rename the file wpa_supplicant.conf (no more .txt extension) and put this file in your SD boot partition.
Also you should put an empty file called SSH on your SD boot partition > make an empty txt file and rename it SSH without any extension.

now put back your SD in your pi and retry to connect.
It should works right away, if not, check in the wifi options, you have one which let you import your wifi datas from the wpa_supplicant.conf file.

hope it will help you.

ps: as said by ncdelrio, you can also add a wifikeyfile.txt in your SD boot :)

ncdelrio
Posts: 12
Joined: Fri Apr 26, 2019 7:34 am
Been thanked: 2 times

Re: Can´t connect to WiFi - Pocket Pi FE

Post by ncdelrio » Mon May 06, 2019 11:57 am

I wasn’t able to acces the network interfaces from the SD alone in my computer. And update the WPA supplicant and wifikeyfile alone did not get my WiFi operational.

User avatar
ekilla
Posts: 162
Joined: Sat Dec 09, 2017 8:04 am
Has thanked: 42 times
Been thanked: 50 times

Re: Can´t connect to WiFi - Pocket Pi FE

Post by ekilla » Mon May 06, 2019 12:11 pm

Ely wrote:
Mon May 06, 2019 9:59 am
make a new txt file and copy / past this in:
Fantastic, that´s it, Thank you very much. To both of you.

User avatar
ekilla
Posts: 162
Joined: Sat Dec 09, 2017 8:04 am
Has thanked: 42 times
Been thanked: 50 times

Re: Can´t connect to WiFi - Pocket Pi FE

Post by ekilla » Mon May 06, 2019 12:32 pm

Ely wrote:
Mon May 06, 2019 9:59 am
now put back your SD in your pi and retry to connect.
Do I need to add samba shares at first to connect with a file explorer from PC?

\\retropie or the IP Address of my pocket don´t connect, while I can connect via SSH without any problem.

User avatar
Ely
Posts: 25
Joined: Wed Aug 15, 2018 5:44 am
Has thanked: 7 times
Been thanked: 11 times

Re: Can´t connect to WiFi - Pocket Pi FE

Post by Ely » Mon May 06, 2019 2:01 pm

Forget about samba for the moment.
you can use a free ftp program like FileZila to connect to your Pi
-host > sftp://the ip of your PI (exemple > sftp://192.168.1.8)
To be sure of your IP, in retropie options, use > Show IP
-ID > pi
-Pass > raspberry

and connect, say yes if any pop up come out and you're done.
Put your roms in /RetroPie/roms/

User avatar
ekilla
Posts: 162
Joined: Sat Dec 09, 2017 8:04 am
Has thanked: 42 times
Been thanked: 50 times

Re: Can´t connect to WiFi - Pocket Pi FE

Post by ekilla » Mon May 06, 2019 2:53 pm

Yes thanks, in between I did that with WINSCP since I couldn´t get samba working until now.

User avatar
ekilla
Posts: 162
Joined: Sat Dec 09, 2017 8:04 am
Has thanked: 42 times
Been thanked: 50 times

Re: Can´t connect to WiFi - Pocket Pi FE

Post by ekilla » Tue May 07, 2019 9:54 am

As I just read on an older thread, Samba is removed so SFTP like I did with WinSCP is the way to go.
