The new powerboost question

[Beautjes]

Hello everyone!

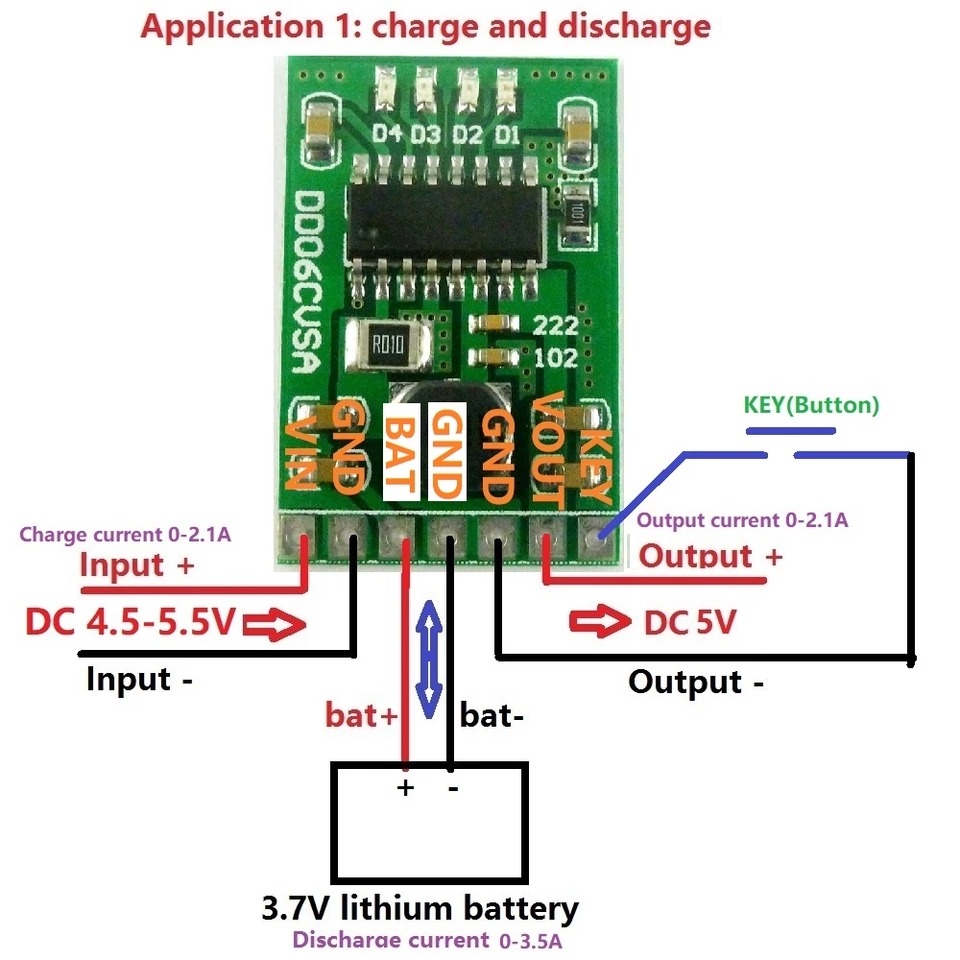

I have a question about the new powerbooster, from the photos i can see a KEY (button)... what does it do if i may ask?

SpoilerShow

The powerboost


here is the link from ali : https://www.aliexpress.com/item/DC-5V-2 ... autifyAB=0

Thanks in advance!

With Friendly Regards,

Beautjes

[HoolyHoo]

Hello everyone!

I have a question about the new powerbooster, from the photos i can see a KEY (button)... what does it do if i may ask?

SpoilerShow


here is the link from ali : https://www.aliexpress.com/item/DC-5V-2 ... autifyAB=0

Thanks in advance!

With Friendly Regards,

Beautjes

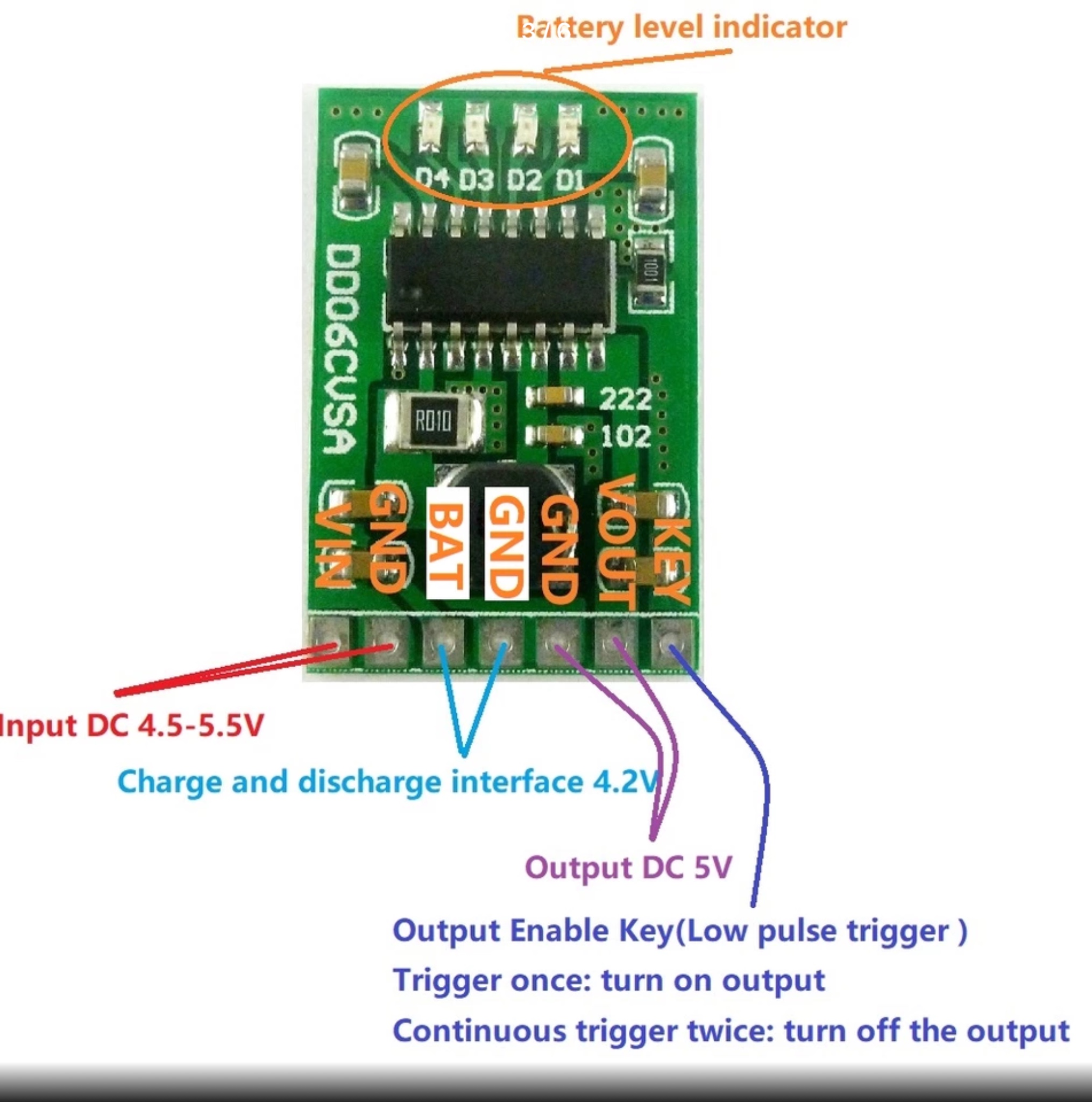

Based on the photo from the link you posted, it seems like it’s a ‘switch’ to turn output power on and off.


[Beautjes]

Thanks for your reply HoolyHoo,
So i can just leave it empty?

Regards Beautjes

[HoolyHoo]

Thanks for your reply HoolyHoo,
So i can just leave it empty?

Regards Beautjes

I would assume yes but you will only know for sure once you receive it and test it.

[Beautjes]

I will order it tommorrow and will test it out on something.
or can i test it on a multimeter?
i dont have a clue on what device i can test it...

[HoolyHoo]

I will order it tommorrow and will test it out on something.
or can i test it on a multimeter?
i dont have a clue on what device i can test it...

Easier to test with multimeter. Just check if your getting 5v between gnd and vout. If your not then short key to gnd and see if it works then.

[Beautjes]

Thanks again HoolyHoo!
Will try it when it arrives and post it here
