ABH's GameBoy SP Rpi 3 A+

Post by ABH » Wed Feb 13, 2019 11:59 am

Hi

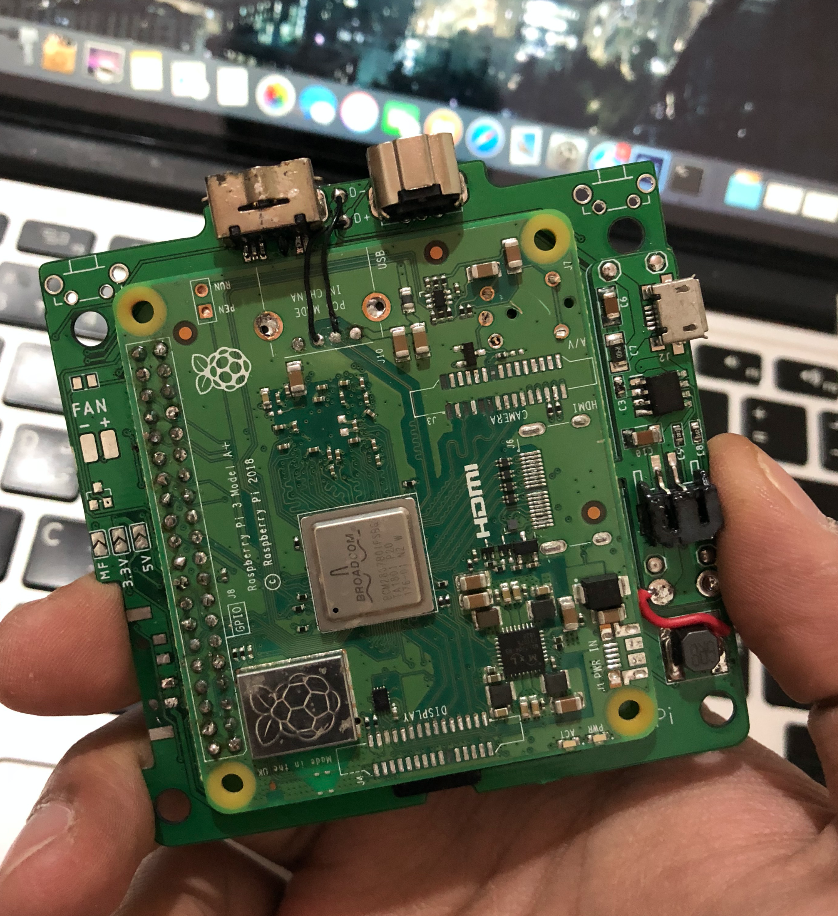

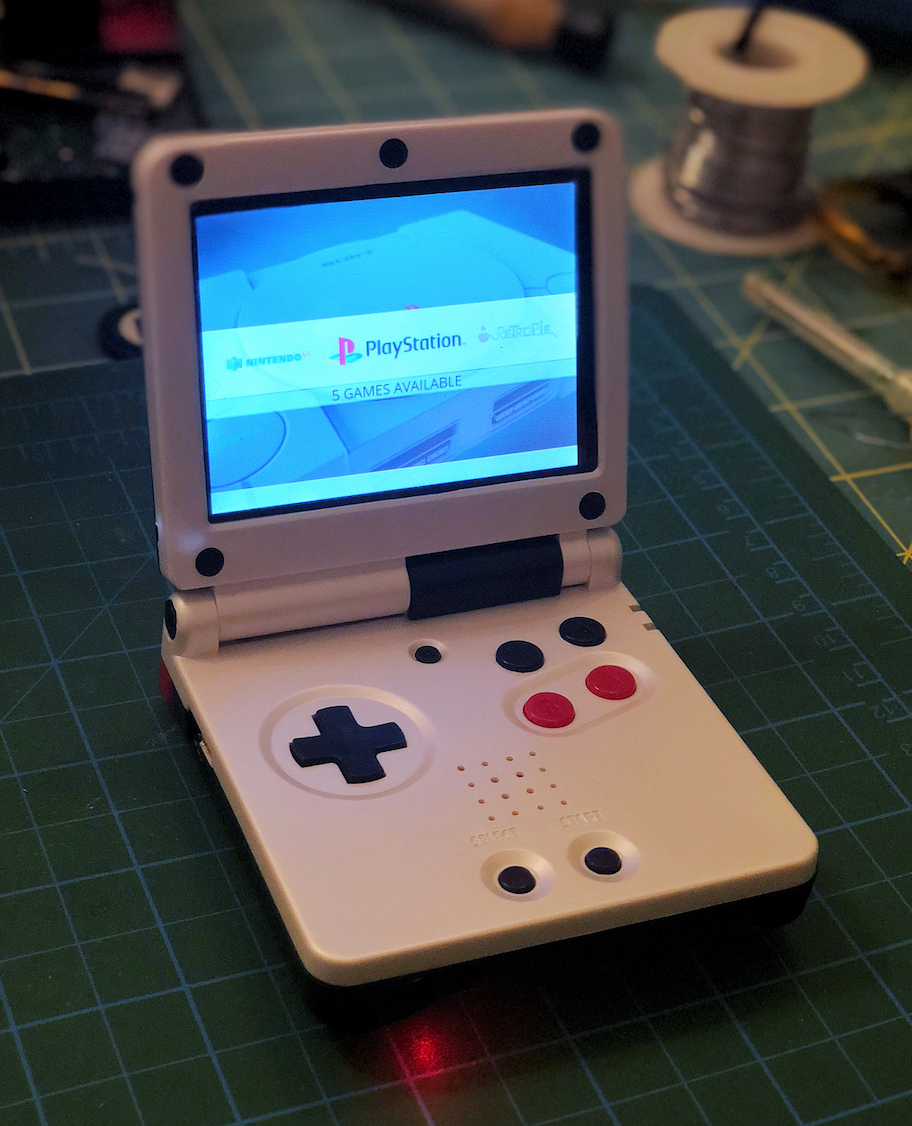

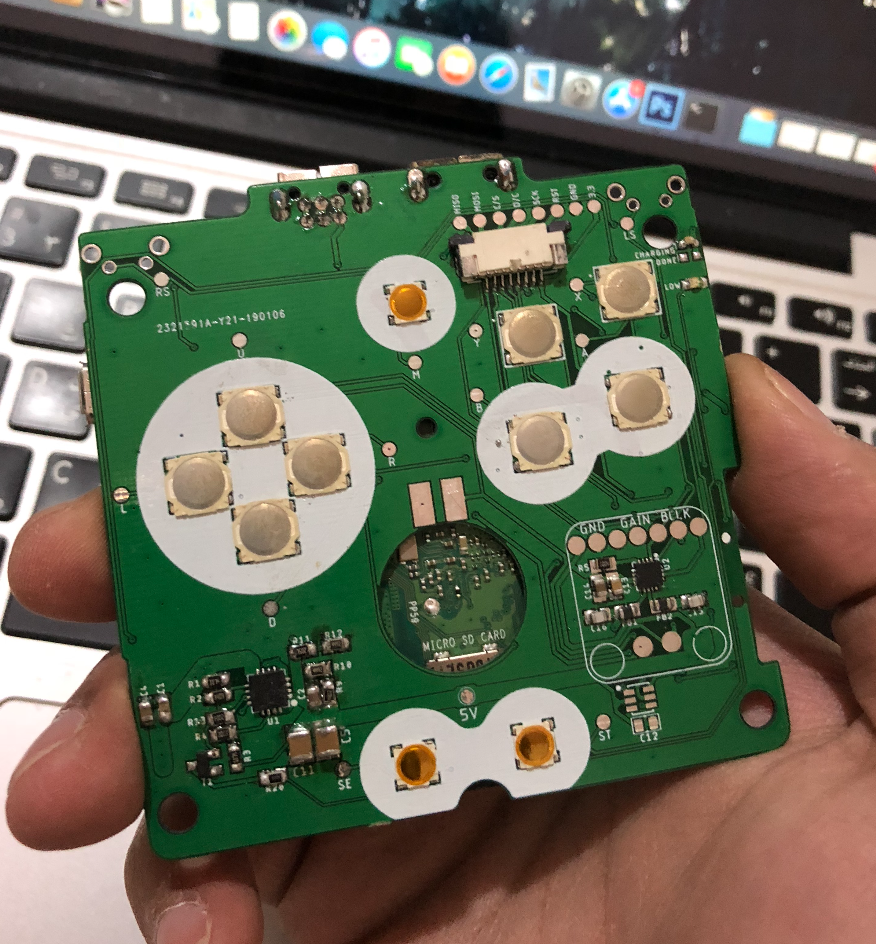

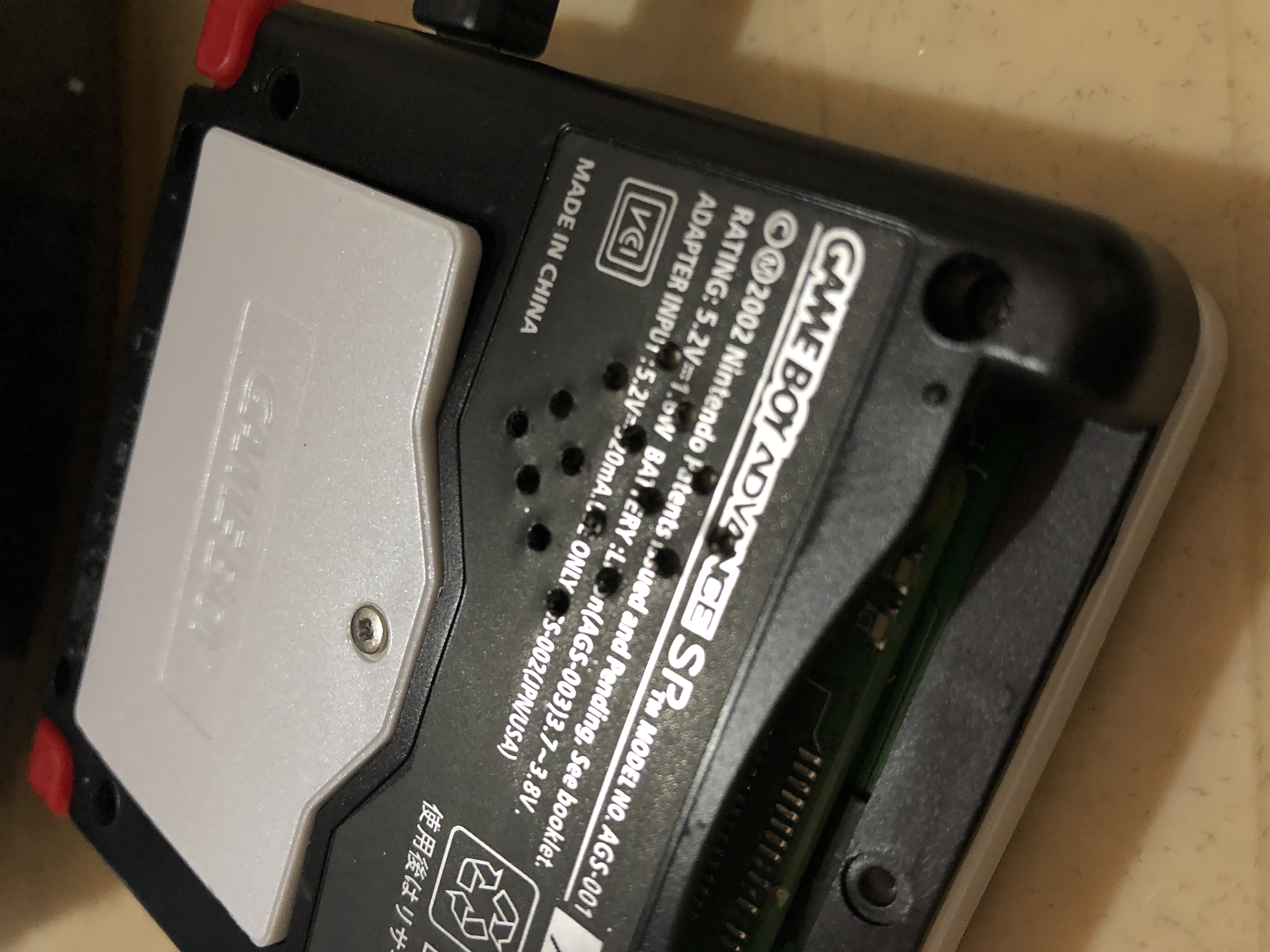

here is my Gameboy SP raspberry pi 3 A+ build with custom pcb
I'd like to share it with you guys.


#Spec :
1- Raspberry Pi 3 A+
2- i2s audio
3- Gpio button input
4- Support original sp port for charging + micro usb
5- 3.2 spi screen
6- x & y buttons
7- Automatic fan activate when the CPU reaches 60c
8- TPS61030 for boosting and TP4056 for charging.

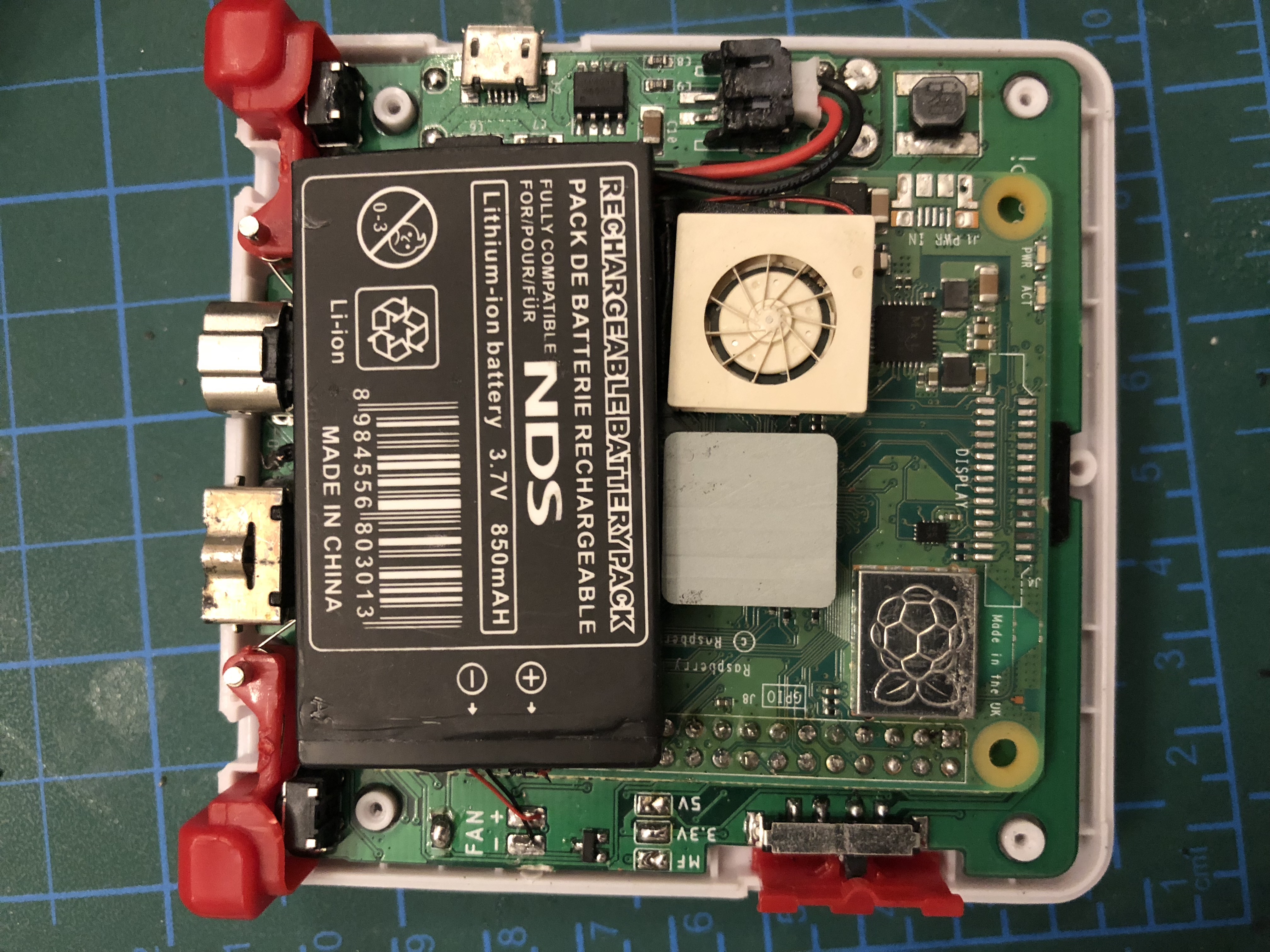

9-850mah battery "I will upgrade it to 2000mah until the new battery arrive"

Screen Shot 2019-02-13 at 8.42.31 PM.png
Screen Shot 2019-02-13 at 8.42.31 PM.png (1.85 MiB) Viewed 5486 times
Screen Shot 2019-02-13 at 9.38.58 PM.png
Screen Shot 2019-02-13 at 9.38.58 PM.png (1.53 MiB) Viewed 5486 times
Screen Shot 2019-02-13 at 9.39.19 PM.png
Screen Shot 2019-02-13 at 9.39.19 PM.png (1.6 MiB) Viewed 5486 times

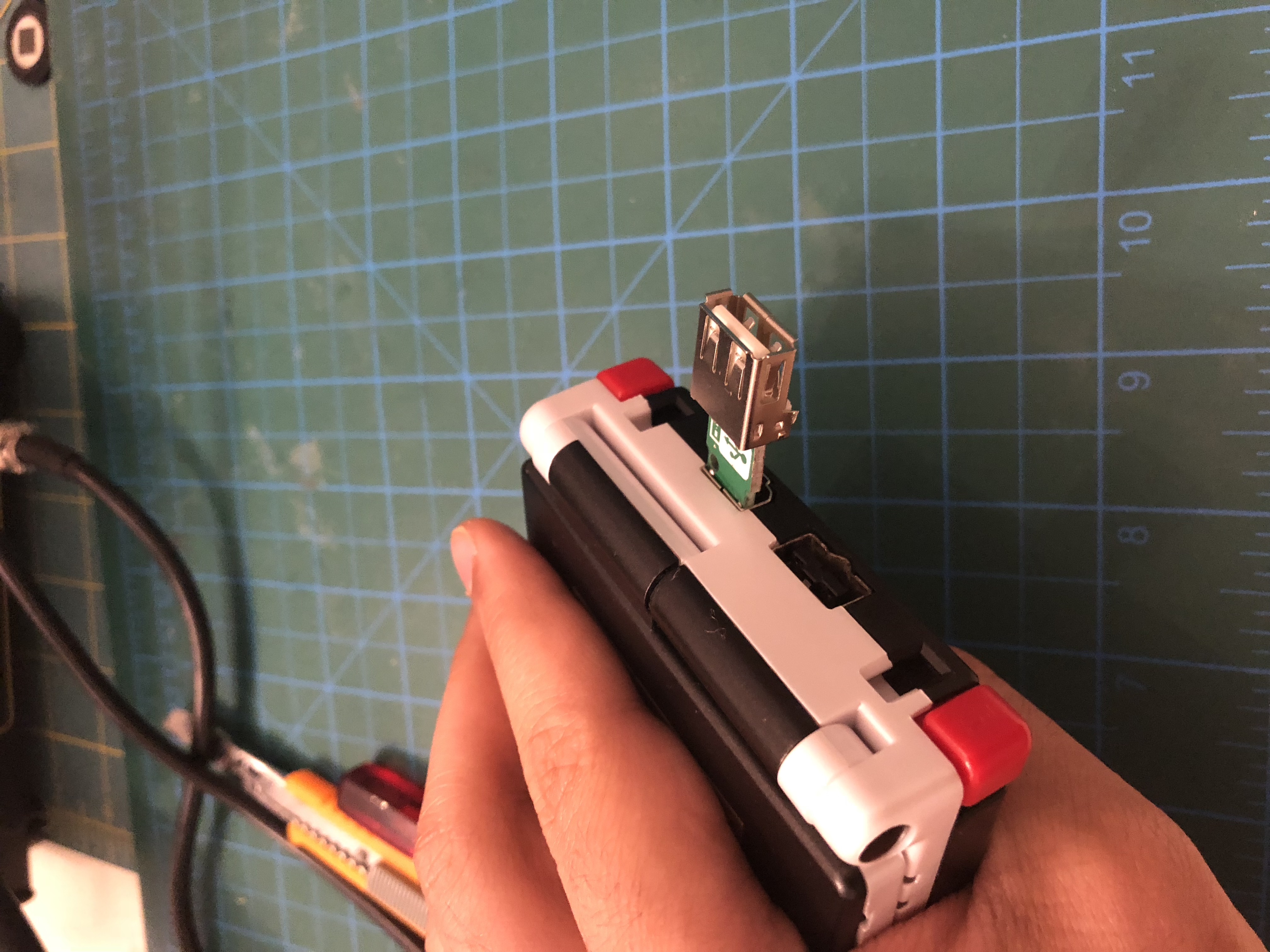

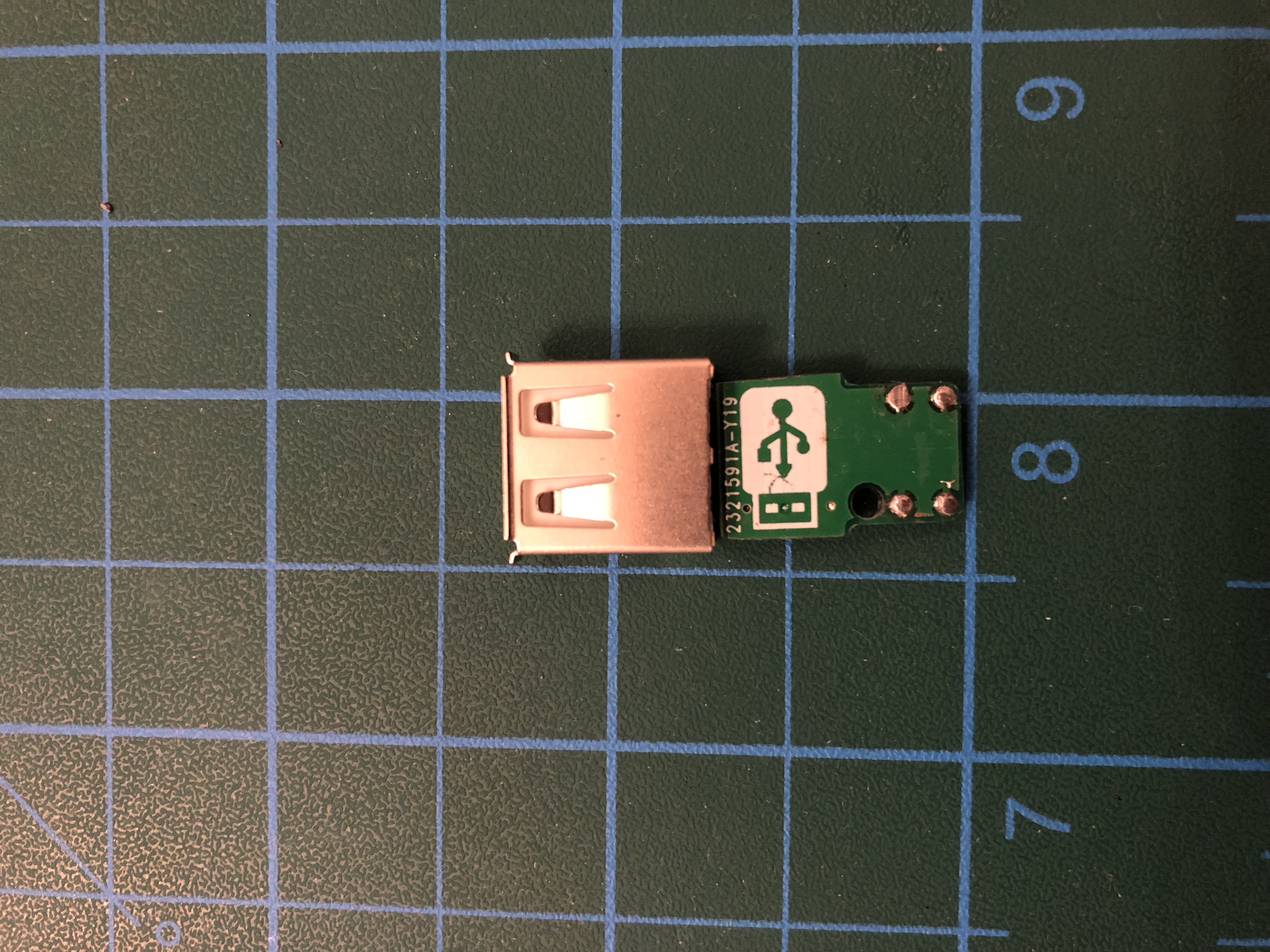

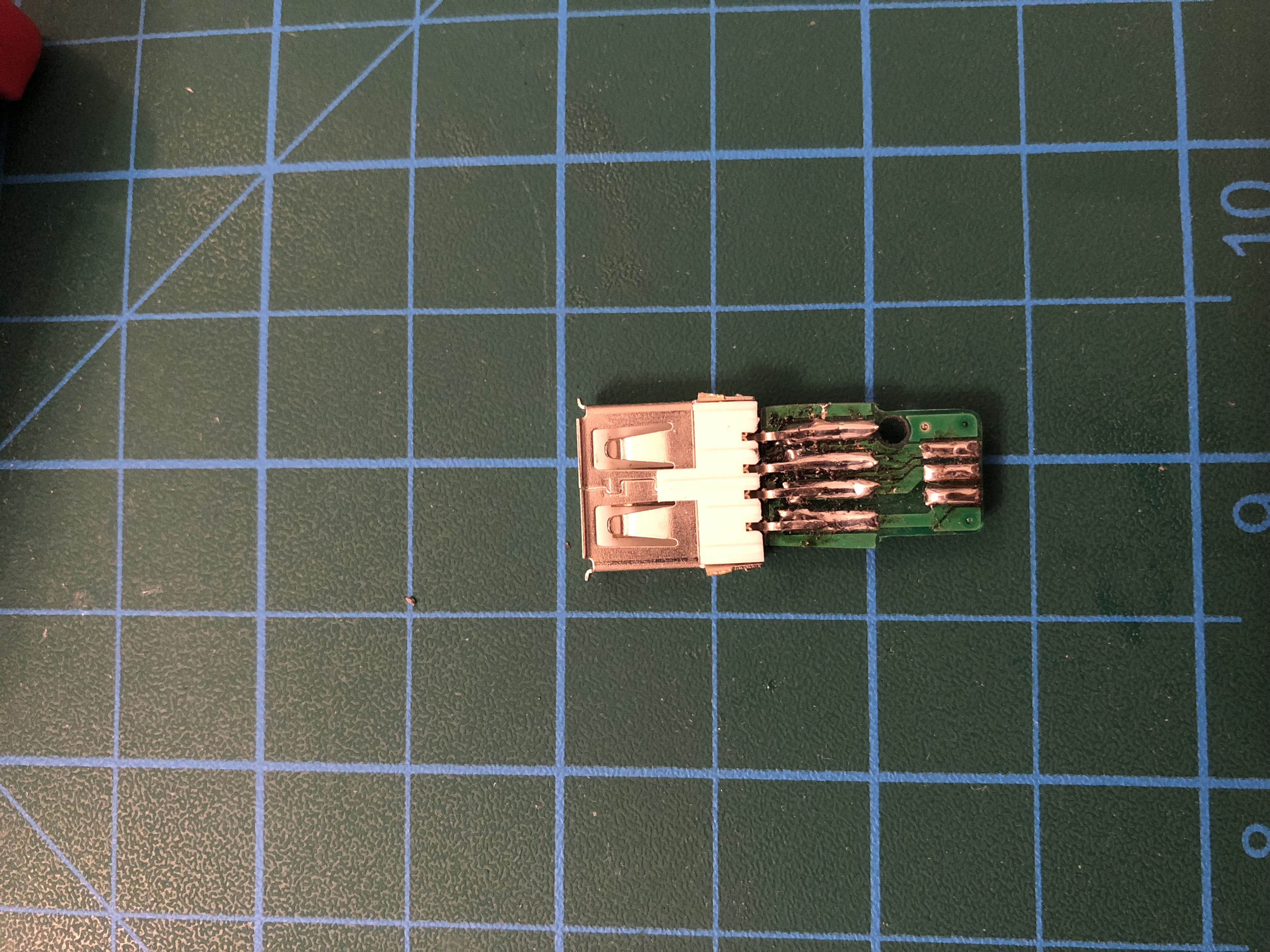

Also i made this littil adepter to access the USB from the gameboy link port
Hope you enjoy it
Last edited by ABH on Wed Feb 20, 2019 9:02 pm, edited 1 time in total.

User avatar
VeteranGamer
Posts: 1699
Joined: Thu Jan 26, 2017 11:12 am
Location: London, UK
Has thanked: 496 times
Been thanked: 882 times

Re: ABH's GameBoy SP Rpi 3 A+

Post by VeteranGamer » Wed Feb 13, 2019 12:11 pm

its looks great....

you've got the GB SP on lock...


.
Last edited by VeteranGamer on Thu Feb 14, 2019 2:23 pm, edited 1 time in total.

User avatar
papajsantos
Posts: 31
Joined: Wed Oct 24, 2018 6:35 am
Has thanked: 21 times
Been thanked: 5 times

Re: ABH's GameBoy SP Rpi 3 A+

Post by papajsantos » Wed Feb 13, 2019 7:23 pm

holy crap! that looks awesome! that's some really clean and pretty work my friend, kudos.
Builds:
JankyBoy V1 - worklog
Freeplay CM3 w/ Dual Thumbsticks and L2/R2 - showcase
Infinity Sword (Kite's Circuit Sword Lite x Thanos's Infinity Gauntlet) - coming soon
-------------------------------
"Romans, they go the house?!"

Gizard
Posts: 70
Joined: Sat Feb 03, 2018 8:37 am
Has thanked: 6 times
Been thanked: 8 times

Re: ABH's GameBoy SP Rpi 3 A+

Post by Gizard » Wed Feb 13, 2019 7:37 pm

This is amazing. Are you selling PCBs?
Check out my bluetooth speaker in an altoids tin! https://sudomod.com/forum/viewtopic.php?t=7274

User avatar
correia5022
Posts: 202
Joined: Mon Dec 05, 2016 12:32 am
Location: Portugal
Has thanked: 17 times
Been thanked: 38 times

Re: ABH's GameBoy SP Rpi 3 A+

Post by correia5022 » Thu Feb 14, 2019 6:49 am

Very clean build. This is probably the hardest build to make because of the tiny console.
Congrats, its very nice!!!
________________________________________
Starting on electronics :)
My first build, 2 years later
https://sudomod.com/forum/viewtopic.php ... 8&start=30
Check out my Boombox: https://nrcboombox.wixsite.com/website

User avatar
ekilla
Posts: 167
Joined: Sat Dec 09, 2017 8:04 am
Has thanked: 44 times
Been thanked: 50 times

Re: ABH's GameBoy SP Rpi 3 A+

Post by ekilla » Thu Feb 14, 2019 2:00 pm

That SP looks awesome and like a lot of work went into the pcb.

Orochi Kusanagi
Posts: 15
Joined: Tue Aug 29, 2017 3:28 pm
Has thanked: 3 times
Been thanked: 9 times

Re: ABH's GameBoy SP Rpi 3 A+

Post by Orochi Kusanagi » Fri Feb 15, 2019 2:59 am

This is beautiful!

No Hands 55
Posts: 22
Joined: Thu Oct 04, 2018 2:53 pm
Has thanked: 9 times

Re: ABH's GameBoy SP Rpi 3 A+

Post by No Hands 55 » Fri Feb 15, 2019 10:51 am

pretty incredible! i think it would be cool to have a custom 3d printed bottom half to allow you to use bigger batteries, and be able to use something like a full size USB and micro sd on the back instead because you can print the bottom half to have the proper cutouts
SuperGameGirl Build:
https://imgur.com/a/KuBRE

User avatar
Robochris
Posts: 281
Joined: Thu Feb 16, 2017 7:49 am
Location: Ohio
Has thanked: 78 times
Been thanked: 38 times

Re: ABH's GameBoy SP Rpi 3 A+

Post by Robochris » Mon Feb 18, 2019 4:04 pm

Top notch! Yeah, if you’re selling pcbs, I’m buying.

User avatar
KonnorJ
Posts: 385
Joined: Thu Jan 11, 2018 1:23 am
Location: United Kingdom
Has thanked: 58 times
Been thanked: 109 times
Contact:

Re: ABH's GameBoy SP Rpi 3 A+

Post by KonnorJ » Wed Feb 20, 2019 3:03 pm

Very cool, interested on how you soldered the pi3A+? SMD header? or just direct mount and solder?
