OSD Battery Monitoring for Helder's AIO Boards

[Lphillimore]

...and now we wait for low battery

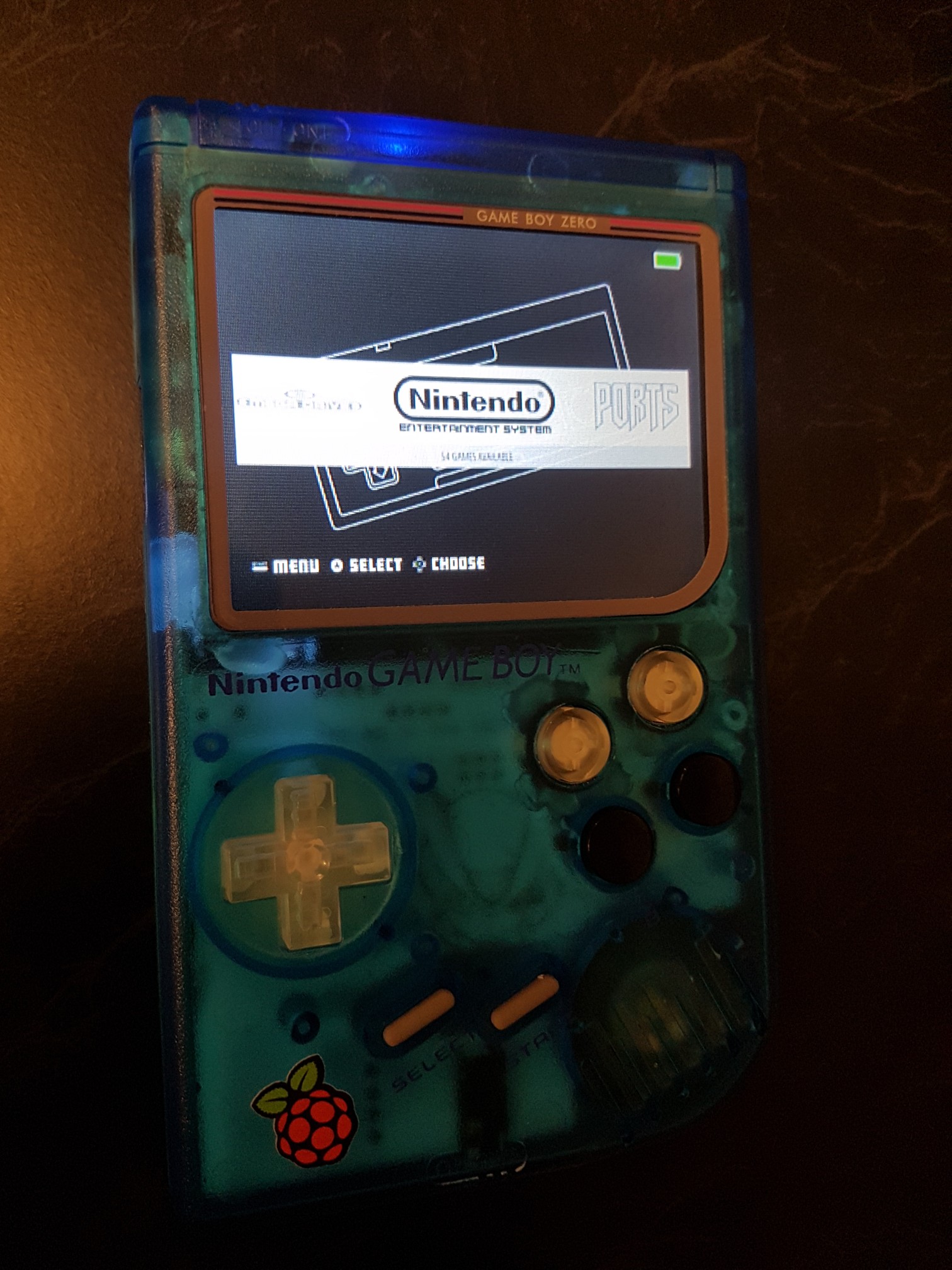

Loaded on nice and easy. Looking really good.

Controls are also spot on. Great bit of work again @Hoolyhoo


[jermzz]

Got mine working, but it always says it's a full battery. Assuming cause I haven't put the resistor in line yet, gotta go grab one tomorrow...

Thanks much for this badly needed solution

[HoolyHoo]

Got mine working, but it always says it's a full battery. Assuming cause I haven't put the resistor in line yet, gotta go grab one tomorrow...

Thanks much for this badly needed solution

Hmmm. Are you sure you wired it to the battery and not the power supply output? Resistor is used to limit current to the atmega input pin to prevent backfeed when powered off. Doesn't have anything to do with voltage. Any pictures of your wiring might help.

[jermzz]

Got mine working, but it always says it's a full battery. Assuming cause I haven't put the resistor in line yet, gotta go grab one tomorrow...

Thanks much for this badly needed solution

Hmmm. Are you sure you wired it to the battery and not the power supply output? Resistor is used to limit current to the atmega input pin to prevent backfeed when powered off. Doesn't have anything to do with voltage. Any pictures of your wiring might help.

Hard to see under the switch, but on the pin directly under the black ground wire for the switch is the brown wire that goes to the bat pin on the powerboost. The blue wire is attached to the bottom pin on the right side of the switch under the bare pin. That one goes to ADC0. Looks like that's how you have it on the diagram, right?

[HoolyHoo]

Got mine working, but it always says it's a full battery. Assuming cause I haven't put the resistor in line yet, gotta go grab one tomorrow...

Thanks much for this badly needed solution

Hmmm. Are you sure you wired it to the battery and not the power supply output? Resistor is used to limit current to the atmega input pin to prevent backfeed when powered off. Doesn't have anything to do with voltage. Any pictures of your wiring might help.

Hard to see under the switch, but on the pin directly under the black ground wire for the switch is the brown wire that goes to the bat pin on the powerboost. The blue wire is attached to the bottom pin on the right side of the switch under the bare pin. That one goes to ADC0. Looks like that's how you have it on the diagram, right?

Hard for me to make heads or tails of the switch wiring from that photo but if it is as you describe then yes it's correct. Nothing else connected to those pins, right? Still having an issue? Are you testing with battery alone with no power plug connected?

[jermzz]

Hmmm. Are you sure you wired it to the battery and not the power supply output? Resistor is used to limit current to the atmega input pin to prevent backfeed when powered off. Doesn't have anything to do with voltage. Any pictures of your wiring might help.

Hard to see under the switch, but on the pin directly under the black ground wire for the switch is the brown wire that goes to the bat pin on the powerboost. The blue wire is attached to the bottom pin on the right side of the switch under the bare pin. That one goes to ADC0. Looks like that's how you have it on the diagram, right?

Hard for me to make heads or tails of the switch wiring from that photo but if it is as you describe then yes it's correct. Nothing else connected to those pins, right? Still having an issue? Are you testing with battery alone with no power plug connected?

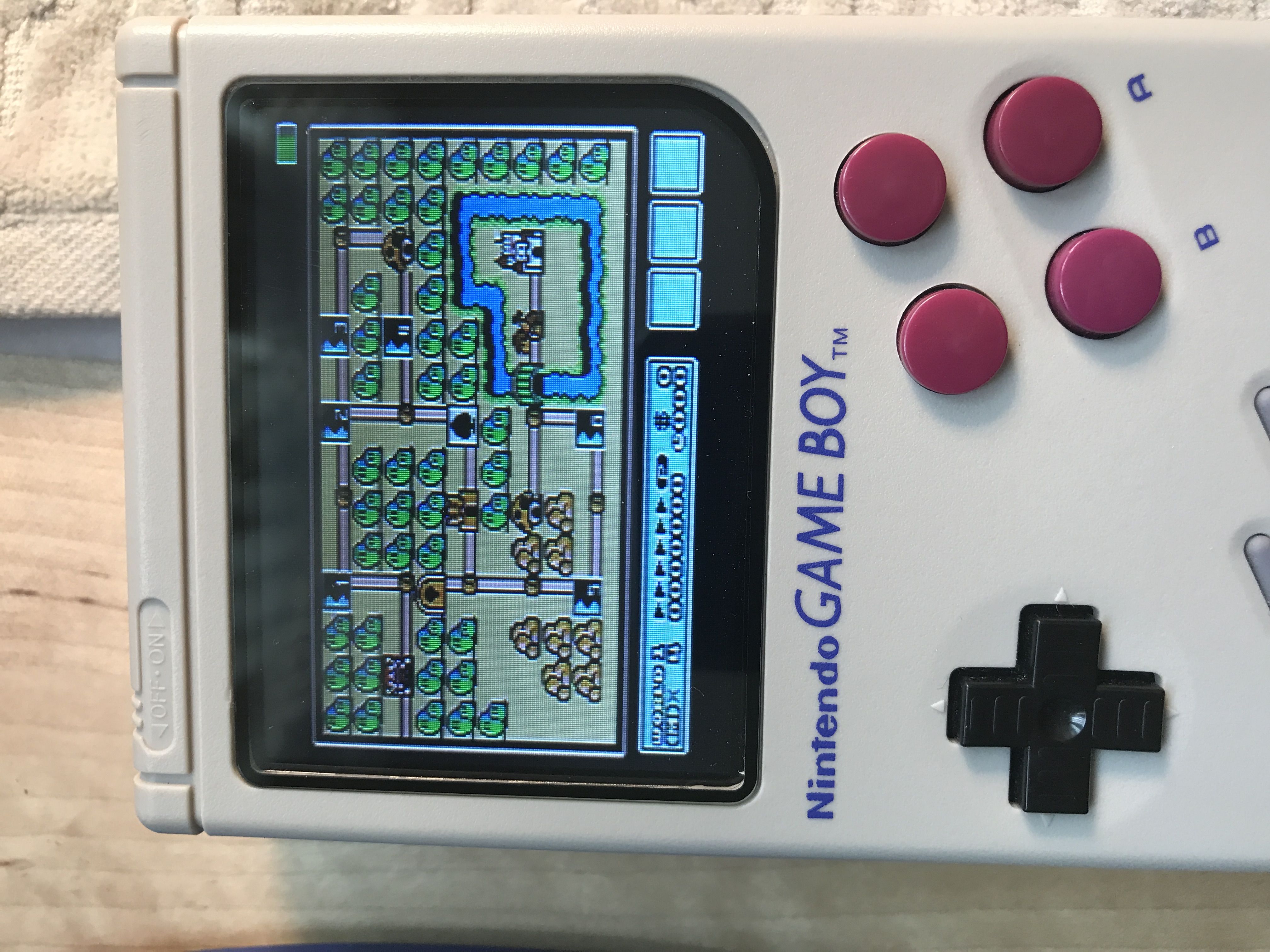

It appears to be working. I guess my battery was just 100% full. After 30 min of letting mario 3 idle it has indeed dropped a notch. I'll let it play til dead just to make sure. But all appears well. Sorry for the false alarm.

[HoolyHoo]

Hard to see under the switch, but on the pin directly under the black ground wire for the switch is the brown wire that goes to the bat pin on the powerboost. The blue wire is attached to the bottom pin on the right side of the switch under the bare pin. That one goes to ADC0. Looks like that's how you have it on the diagram, right?

Hard for me to make heads or tails of the switch wiring from that photo but if it is as you describe then yes it's correct. Nothing else connected to those pins, right? Still having an issue? Are you testing with battery alone with no power plug connected?

It appears to be working. I guess my battery was just 100% full. After 30 min of letting mario 3 idle it has indeed dropped a notch. I'll let it play til dead just to make sure. But all appears well. Sorry for the false alarm.

Well, that's good. Glad you got it sorted out. Battery steps are in 25% increments. So right now you are showing 75%. When its gets to 25%, battery indicator will go yellow and low battery warning video will play once. If you don't recharge and its gets to the last step in battery meter, then shutdown video will play and auto shutdown will begin.

[jermzz]

Hard for me to make heads or tails of the switch wiring from that photo but if it is as you describe then yes it's correct. Nothing else connected to those pins, right? Still having an issue? Are you testing with battery alone with no power plug connected?

It appears to be working. I guess my battery was just 100% full. After 30 min of letting mario 3 idle it has indeed dropped a notch. I'll let it play til dead just to make sure. But all appears well. Sorry for the false alarm.

Well, that's good. Glad you got it sorted out. Battery steps are in 25% increments. So right now you are showing 75%. When its gets to 25%, battery indicator will go yellow and low battery warning video will play once. If you don't recharge and its gets to the last step in battery meter, then shutdown video will play and auto shutdown will begin.

Yeah, the low battery video looks awesome from your pictures. Never been so excited for my battery to die. Lol

[jermzz]

Hard for me to make heads or tails of the switch wiring from that photo but if it is as you describe then yes it's correct. Nothing else connected to those pins, right? Still having an issue? Are you testing with battery alone with no power plug connected?

It appears to be working. I guess my battery was just 100% full. After 30 min of letting mario 3 idle it has indeed dropped a notch. I'll let it play til dead just to make sure. But all appears well. Sorry for the false alarm.

Well, that's good. Glad you got it sorted out. Battery steps are in 25% increments. So right now you are showing 75%. When its gets to 25%, battery indicator will go yellow and low battery warning video will play once. If you don't recharge and its gets to the last step in battery meter, then shutdown video will play and auto shutdown will begin.

How hard would this be to port over to use on a teensey or audrino Leonardo. Hard even though they're still atmega32u4 based?

[HoolyHoo]

It appears to be working. I guess my battery was just 100% full. After 30 min of letting mario 3 idle it has indeed dropped a notch. I'll let it play til dead just to make sure. But all appears well. Sorry for the false alarm.

Well, that's good. Glad you got it sorted out. Battery steps are in 25% increments. So right now you are showing 75%. When its gets to 25%, battery indicator will go yellow and low battery warning video will play once. If you don't recharge and its gets to the last step in battery meter, then shutdown video will play and auto shutdown will begin.

How hard would this be to port over to use on a teensey or audrino Leonardo. Hard even though they're still atmega32u4 based?

Not hard at all and not much different. Make sure to use same pin out.
