Homebrew tiny pi clone

Post by doro44 » Mon Jun 04, 2018 7:35 am

Hi guys,

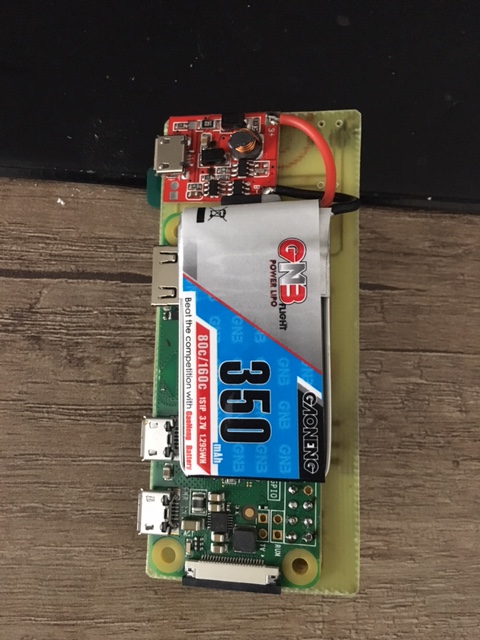

another homebrew project - a tiny pi clone :)

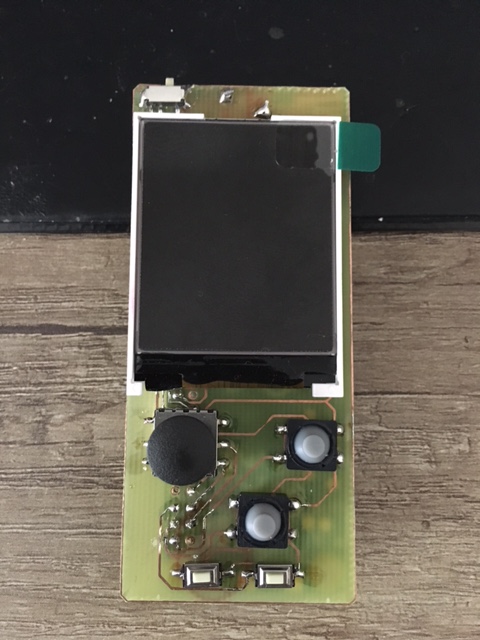

I designed the board by my self, the board is singlesided for easy home etching. I did use slightly bigger display 1.8" 128x160 px and bigger directional button.
and here is the bare pcb:
If someone would be interested I can share the PCB design and list of components used (all aliexpress)...

klotzii
Posts: 9
Joined: Mon May 14, 2018 7:57 am
Has thanked: 2 times

Re: Homebrew tiny pi clone

Post by klotzii » Mon Jun 04, 2018 7:43 am

Yeah, I´m interested!
Please share your parts list and the PCB files!

doro44
Posts: 27
Joined: Mon Aug 21, 2017 11:55 am
Has thanked: 2 times
Been thanked: 6 times

Re: Homebrew tiny pi clone

Post by doro44 » Mon Jun 04, 2018 12:10 pm

I ll just put here everything:

display: https://www.aliexpress.com/item/1pcs-1- ... 4c4dDehBMr
Joystick: https://www.aliexpress.com/item/5-pcs-5 ... 4c4dUIH3yl
Big buttons: https://www.aliexpress.com/item/20PCS-L ... 4c4dUIH3yl
Small buttons: https://www.aliexpress.com/item/100PCS- ... autifyAB=0
Switch: https://www.aliexpress.com/item/50Pcs-M ... autifyAB=0
Power: I have taken out of the mini powerbank that was powered by single 18650 cell
Battery: similar to this: https://www.aliexpress.com/item/Gaoneng ... autifyAB=0

I have created the PCB in easyeda online, and you can download the cb here: http://dorica.sk/downloads/
Just download, change the extension to json and load to easyeda...

For display, I am using fbtft st7735r driver, just enable dtparam=spi-on in config.txt, follow standard procedure to install fbtft and add add following line to your fbtft.conf file:
options fbtft_device custom name=fb_st7735r gpios=reset:25,dc:24 speed=16000000 width=128 height=160 rotate=0 bgr=0 fps=60

For buttons, I have used this guide: https://sudomod.com/forum/viewtopic.php?t=57

angelgrant
Posts: 1
Joined: Sun Sep 03, 2017 1:39 pm

Re: Homebrew tiny pi clone

Post by angelgrant » Mon Jun 04, 2018 1:38 pm

I'm interested in it! Great thing
Hello! Have somebody tried read more about bet365 android app bonuses?

User avatar
epicpwn
Posts: 47
Joined: Tue Sep 20, 2016 12:38 pm
Has thanked: 33 times
Been thanked: 9 times

Re: Homebrew tiny pi clone

Post by epicpwn » Mon Jun 04, 2018 2:08 pm

Nice work! Any videos of this in action?

User avatar
moosepr
Posts: 524
Joined: Wed Jan 25, 2017 6:18 am
Has thanked: 69 times
Been thanked: 241 times
Contact:

Re: Homebrew tiny pi clone

Post by moosepr » Tue Jun 05, 2018 2:33 am

nicely done!! You might be able to get that speed value up a bit to help make the screen run faster. try this

speed=40000000

:)
Get a small cheep LCD in your project https://www.sudomod.com/forum/viewtopic.php?f=22&t=2312
Wrap it all round a battery https://www.sudomod.com/forum/viewtopic.php?f=13&t=2292
Or use a custom PCB to make it really small https://www.sudomod.com/forum/viewtopic.php?f=13&t=2512
or make it really really really really tiny!! https://www.sudomod.com/forum/viewtopic.php?f=13&t=2919

doro44
Posts: 27
Joined: Mon Aug 21, 2017 11:55 am
Has thanked: 2 times
Been thanked: 6 times

Re: Homebrew tiny pi clone

Post by doro44 » Tue Jun 05, 2018 12:54 pm

I need to mention one thing - it appears I did use too big resitor (150 ohm) for the display backlight. I am going to try lower resitance to make sure the backlight is not so dim:
I am going to try to put one more in paralel, it should lower the resitance to half.

doro44
Posts: 27
Joined: Mon Aug 21, 2017 11:55 am
Has thanked: 2 times
Been thanked: 6 times

Re: Homebrew tiny pi clone

Post by doro44 » Tue Jun 05, 2018 12:55 pm

Also, what retropie theme would you guys recommend for this small screen?

User avatar
Helder
Trailblazer
Trailblazer
Posts: 2985
Joined: Thu May 05, 2016 8:33 am
Location: Rogers, AR
Has thanked: 1459 times
Been thanked: 3114 times

Re: Homebrew tiny pi clone

Post by Helder » Tue Jun 05, 2018 1:27 pm

Use a 3.6ohm resistor for proper backlight voltage.
Chat with me and other members On Discord

Don't contact me about obtaining my board files (as you will not get them). If my Boards or PCB Kits are sold out, they will be restocked as soon as I can get them and there is demand for them. You can join the mailing list on my Website to be notified when they are available.


Helder's Game Tech Website

We will not support any cloned work so don't come to us with technical issues to resolve, go talk to the cloner for help.

Gizard
Posts: 78
Joined: Sat Feb 03, 2018 8:37 am
Has thanked: 6 times
Been thanked: 8 times

Re: Homebrew tiny pi clone

Post by Gizard » Tue Jun 05, 2018 4:15 pm

When I click the link on your website to download your PCB, I just get a very long line of code.
