mintyPi 2.0

[Jmags1700]

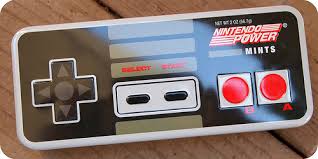

Nintendo brand mints if only it was bigger..... spare me the dirty jokes

[Jmags1700]

Nintendo brand mints if only it was bigger..... spare me the dirty jokes size 2"x5"

[moosepr]

looking back through twitter, the screen is an ili9341 as in the guide in my signature.

https://twitter.com/sudomod_wermy/statu ... 2871549953

and to save space, i would assume gpio is used for the buttons

Thanks for the info. The original screen was 2.2", in the video he said the new version's screen is bigger.

they do the ili9341 screen in 2.2", 2.4", and 2.8" flavours!!

Nintendo brand mints if only it was bigger..... spare me the dirty jokes

insert standard "thats what she said" joke!!

how does that mint tin compare to a zero size wise?

[Sirlias]

looking back through twitter, the screen is an ili9341 as in the guide in my signature.

https://twitter.com/sudomod_wermy/statu ... 2871549953

and to save space, i would assume gpio is used for the buttons

Thanks for the info. The original screen was 2.2", in the video he said the new version's screen is bigger.

they do the ili9341 screen in 2.2", 2.4", and 2.8" flavours!!

Nintendo brand mints if only it was bigger..... spare me the dirty jokes

insert standard "thats what she said" joke!!

how does that mint tin compare to a zero size wise?

I think it will be the 2.4" size. The 2.8" is a hair too long I believe. (with the pcb behind it).

[wermy]

Thanks for the info. The original screen was 2.2", in the video he said the new version's screen is bigger.

they do the ili9341 screen in 2.2", 2.4", and 2.8" flavours!!

Nintendo brand mints if only it was bigger..... spare me the dirty jokes

insert standard "thats what she said" joke!!

how does that mint tin compare to a zero size wise?

I think it will be the 2.4" size. The 2.8" is a hair too long I believe. (with the pcb behind it).

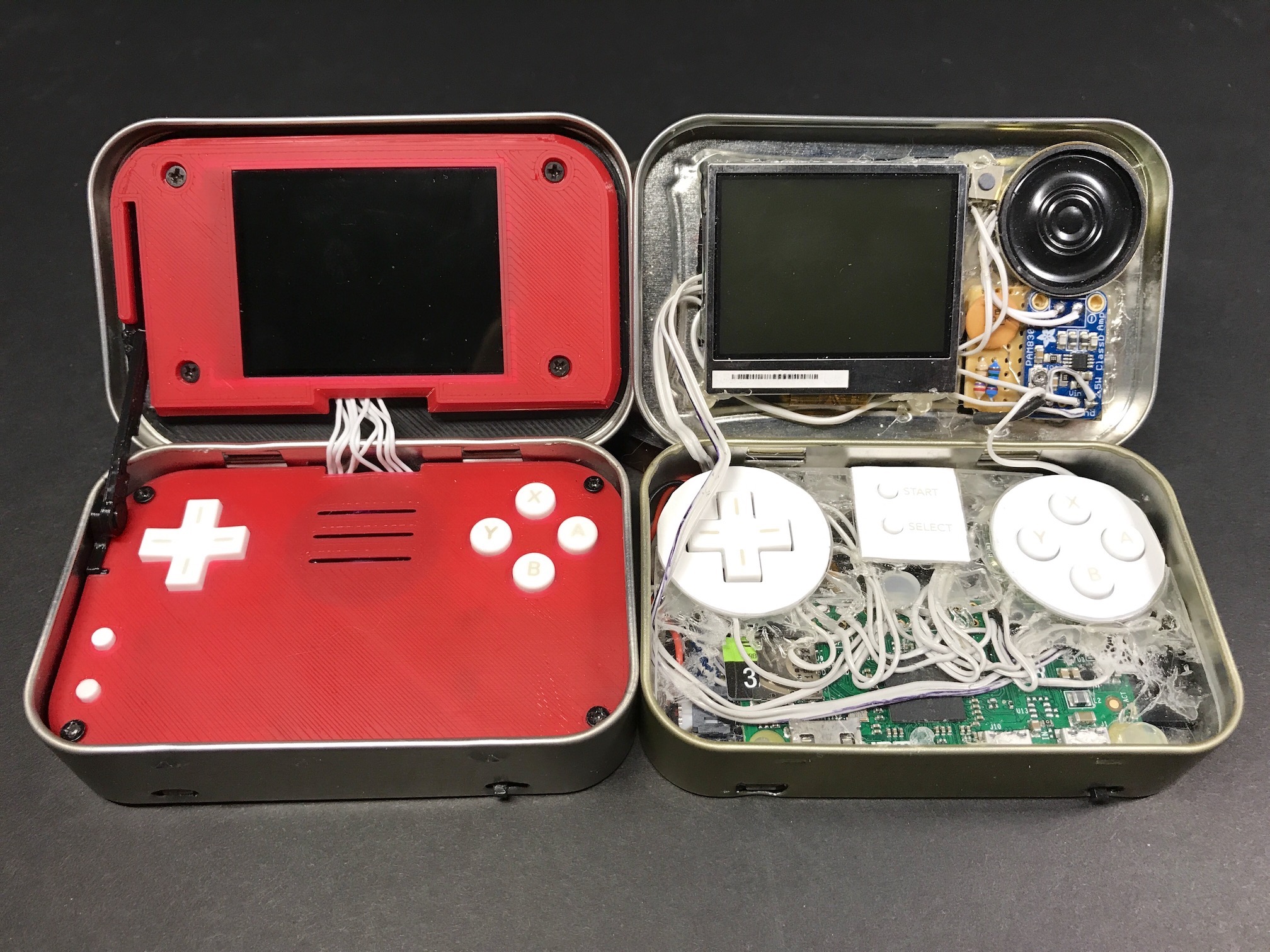

It's the 2.2 actually. The first one I did was 2". That 0.2" may not sound like a lot, but it's 10% bigger than the first screen I used, and seems much bigger when you put them side by side:

FullSizeRender 2.jpg (792.55 KiB) Viewed 12907 times

2.4" might fit though, I'll have to look into it.

[Claw22000]

Awesome Project. This is exactly what I was looking for. A parts list would really help so I can get things ordered. I understand you have a ton of work on your awesome videos, so it might be a wile before you release all the build info. I just know that it takes a wile for me to find parts sometimes and would like to get a head start so when you do release the video/instructions I can start working.

Again super awesome! Thanks for all your work.

DrClaw

[yogurtcup]

Could these buttons work?
http://www.ebay.com/itm/US-Replacement- ... 147082509

[wermy]

Awesome Project. This is exactly what I was looking for. A parts list would really help so I can get things ordered. I understand you have a ton of work on your awesome videos, so it might be a wile before you release all the build info. I just know that it takes a wile for me to find parts sometimes and would like to get a head start so when you do release the video/instructions I can start working.

Again super awesome! Thanks for all your work.

DrClaw

I'll post a parts list soon. There are a couple of parts that I want to try out cheaper alternatives for first.

[wermy]

Could these buttons work?
http://www.ebay.com/itm/US-Replacement- ... 147082509

Unfortunately no, I did mine with DS Lite buttons which are slightly different and use the silicone membrane rather than clicky tactile switches.

[yogurtcup]

Could these buttons work?
http://www.ebay.com/itm/US-Replacement- ... 147082509

Unfortunately no, I did mine with DS Lite buttons which are slightly different and use the silicone membrane rather than clicky tactile switches.

I see. But couldn't i use these over the conductive pads? Or are they too large/small in size?

Could also see using the 3DS analog stick, but maybe thats asking for too much
